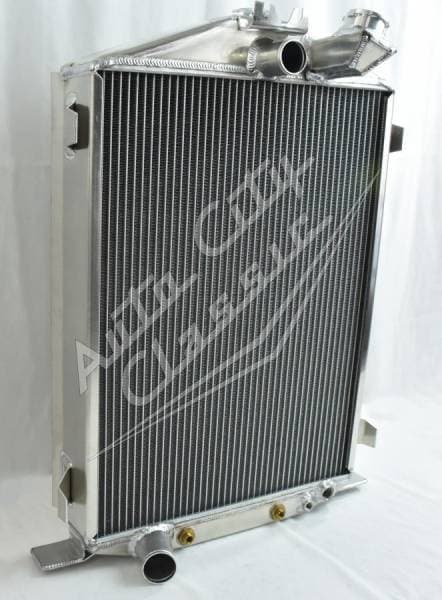

Aluminum Radiator Cent, Lower Left- Optional Shroud and Fan (Black or Chrome)
100% Aluminum, 100% Welded Radiator- Lifetime Warranty
Fits Models: 1932 Ford Hi-Boy with Ford Motor and Full Height Grill Shell

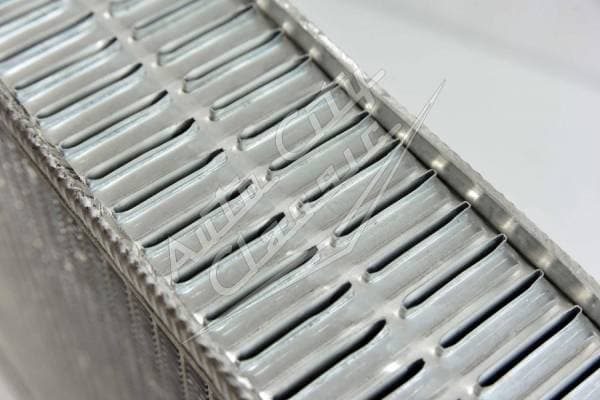

Direct replacement original style tanks with built in transmission cooler. Radiator has dual 1 1/8" high flow tubes for maximum cooling.

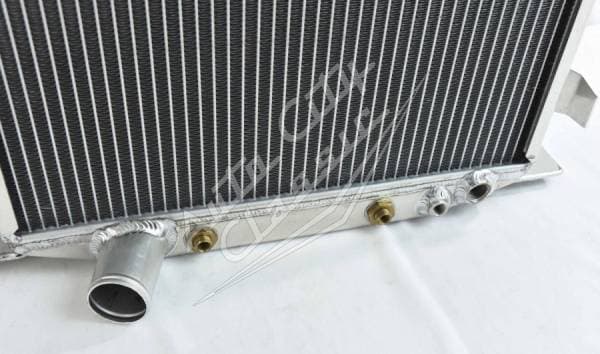

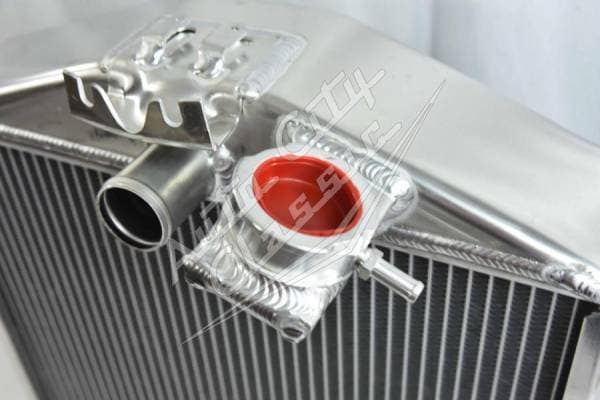

1 1/2" Center Inlet, 1 3/4" Lower Left Outlet
Transmission fitting size 1/8-27 NPT
Core Size: 16" wide x 22" tall x 2/12" thick
Overall Size (widest point): 19 1/2" wide (side brackets) x 27 1/4" tall a 4" thick

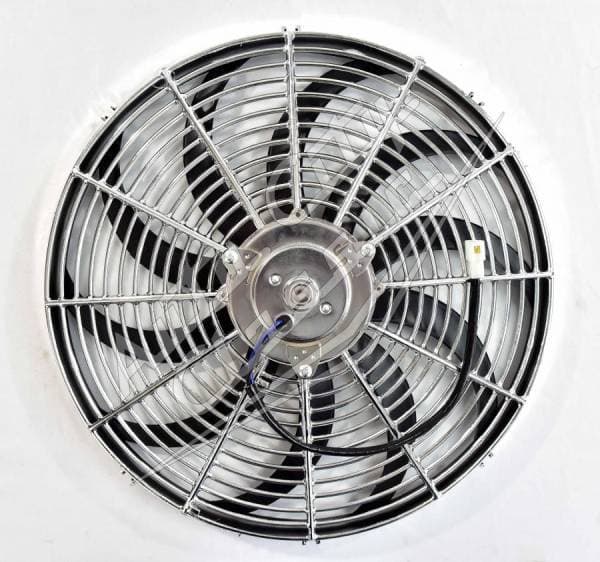

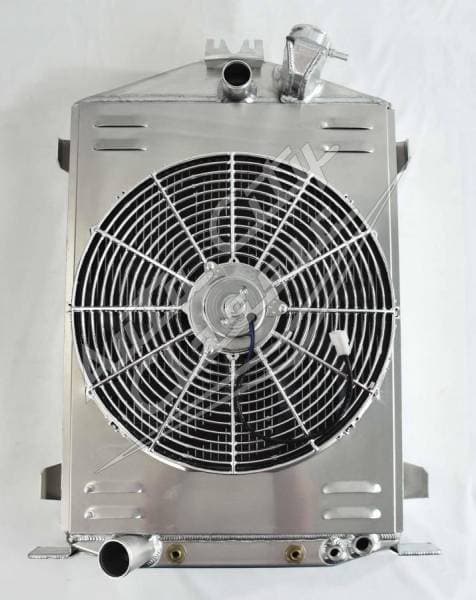

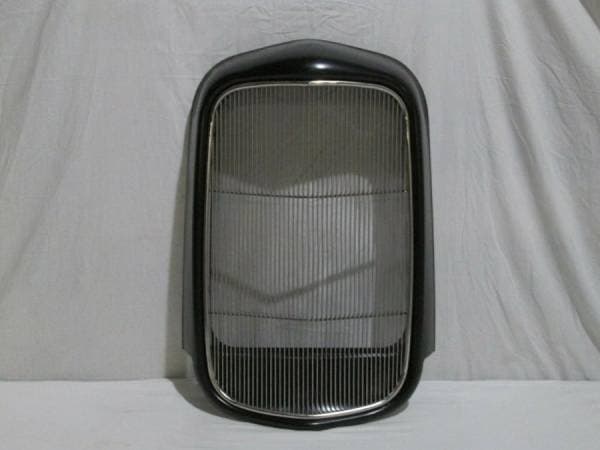

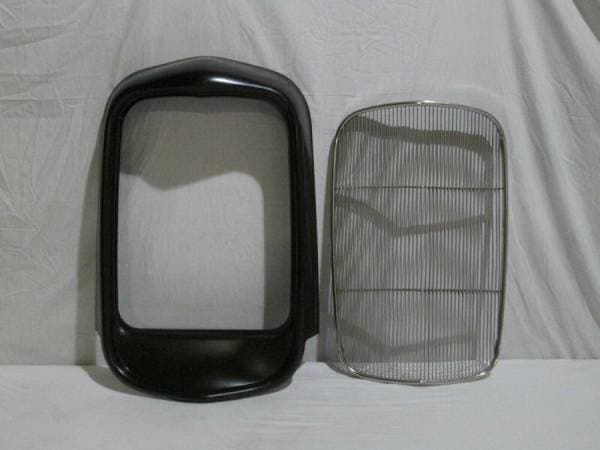

Note: There is an option to add the aluminum shroud and 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud. You can aslo choose to add the 32" grill shell on- this is smooth. No crank hole, no fill neck.
Questions? 1-800-828-2212
*Lifetime warranty is for manufacturers defects only.*
