Aluminum Radiator Center, Right Lower- Optional Shroud and Fan (Black or Chrome)
100% Aluminum, 100% Welded- Lifetime Warranty
Fits Models: 1942-1948 Chevy Passenger Cars with V8
(Will work with 6 cylinder but adaptions need to be made for the hoses for the inlet/outlet)
Direct replacement V8 conversion radiator for 42-48 chevy passenger cars. Original style tanks with built in transmission cooler. Radiator has dual 1 1/8" high flow tubes for maximum cooling.

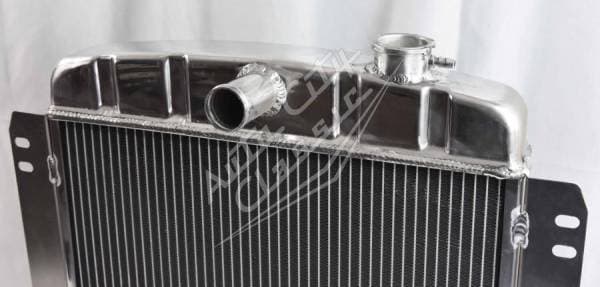

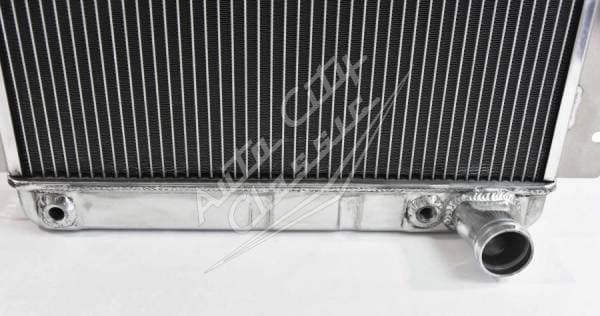

1 1/2" Center Inlet, 1 3/4" Right Lower Outlet

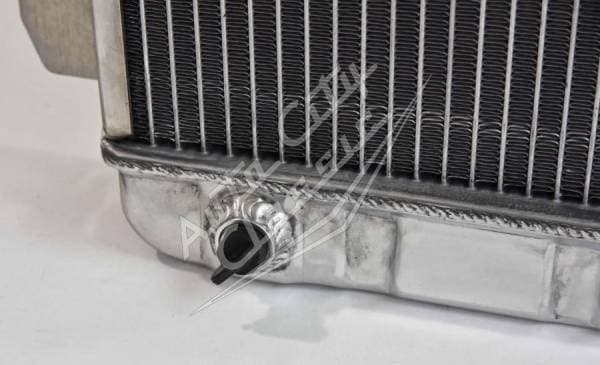

Transmission fitting size 1/4-18 NPT
Core size: 18 1/4" wide, 20 5/8" tall, 2 1/2" thick
Overall size: 22 3/8" wide, 26 3/4" tall, 3" thick

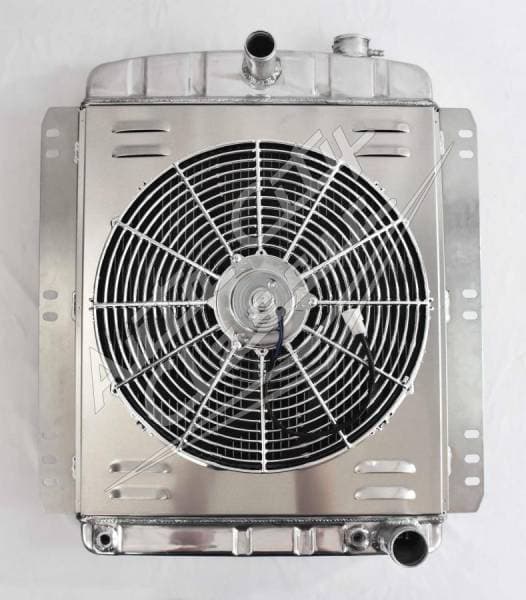

Note: There is an option to add the aluminum shroud and 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.
Questions? 1-800-828-2212
