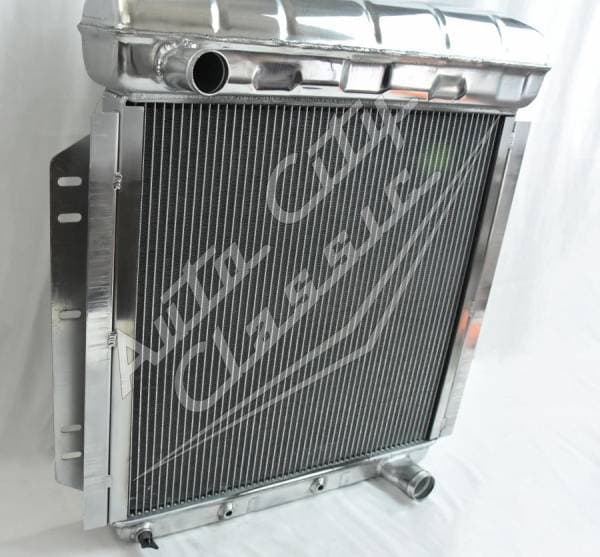

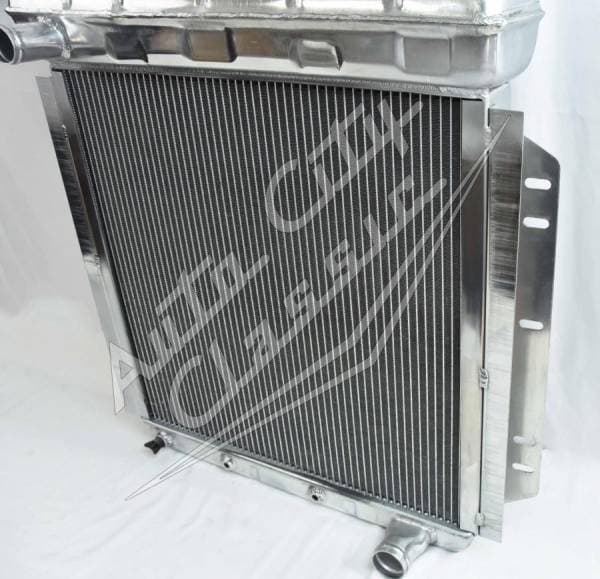

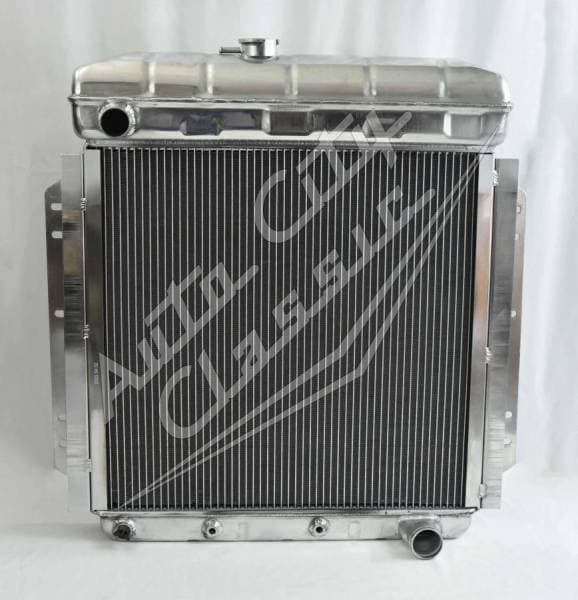

Aluminum Radiator Upper Left, Lower Right- Optional Shroud and Fan (Black or Chrome)
100% Aluminum, 100% Welded Radiator- Lifetime Warranty
Fits Models: 1953-1956 Ford Pickup with Chevy V8 Motor
Direct bolt in semi polished aluminum radiator for 53-56 Ford Pickup with Chevy V8. Radiator has built in transmission cooler with dual 1 1/8" high flow tubes for maximum cooling.

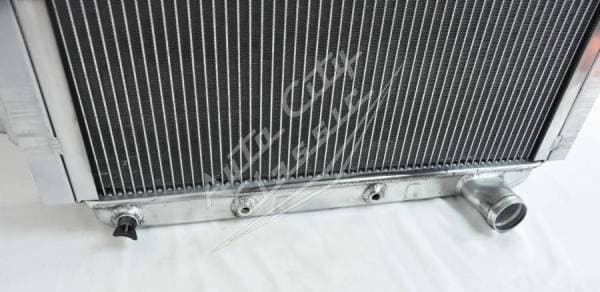

1 1/2" Upper Left Inlet, 1 3/4" Lower Right Outlet
Transmisson fitting size 1/8-27 NPT
Core size: 22 3/4" wide, 19 3/4" tall, 2 3/4" thick
Overall size (widest point): 26 1/4" wide, 28" tall, 4" thick

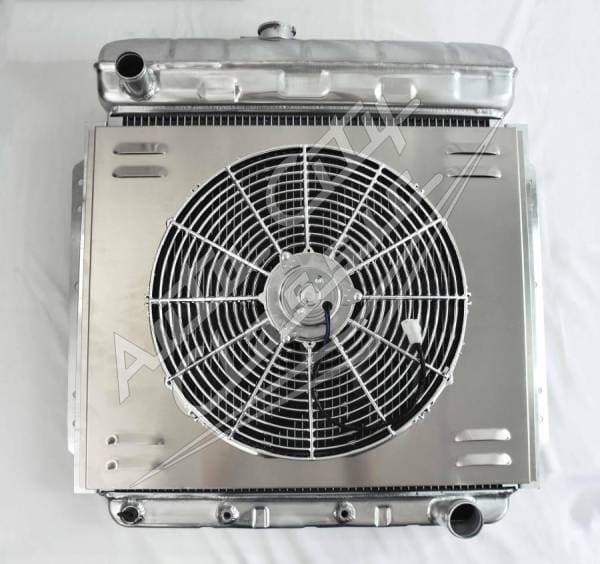

Note: There is an option to add the aluminum shroud and 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.
Questions? 1-800-828-2212
*Lifetime warranty against manufacturer defects.*
