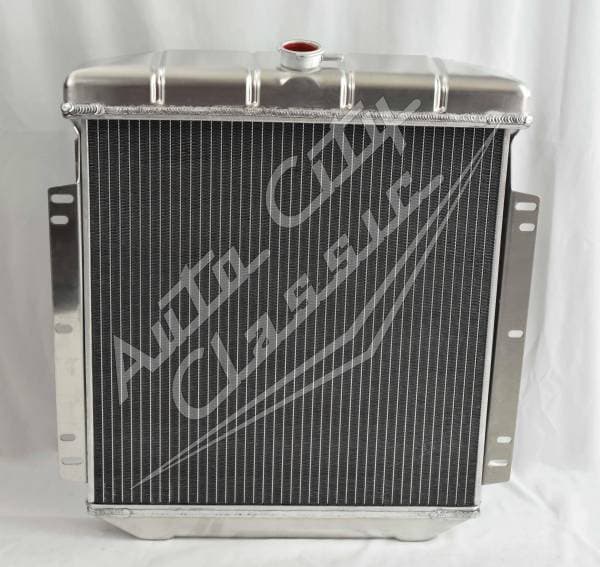

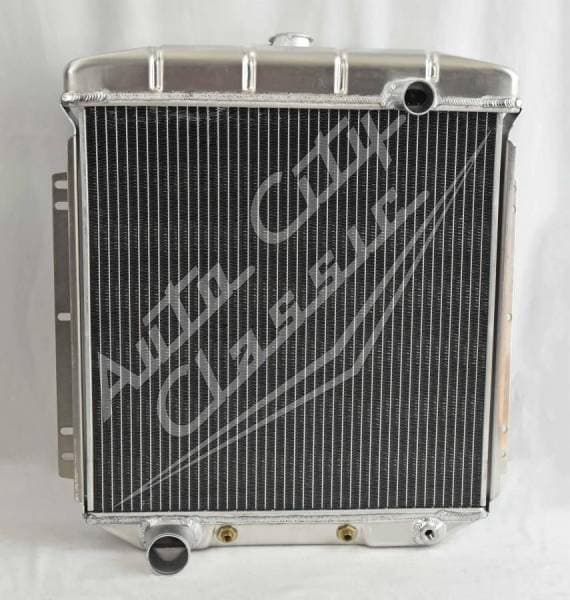

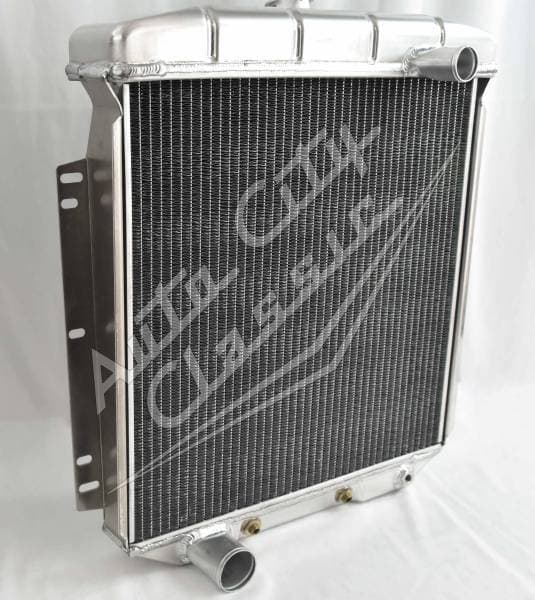

Aluminum Radiator Upper Right, Lower Left- Optional Shroud and Fan (Black or Chrome)
100% Aluminum, 100% Welded Radiator- Lifetime Warranty
Fit Models: 1954-1956 Ford Passenger Cars V8 Sunliner, Skyliner, Customline, Crestline, Mainline, Victoria, Crown Victoria
Note: This radiator fits Y block engine but there is not enough room to install both the fan and shroud. All others style work great!
Direct bolt-in replacement aluminum radiator with original style stamped tank. Built in transmission cooler with dual 1 1/8" high flow tubes for maximum cooling.

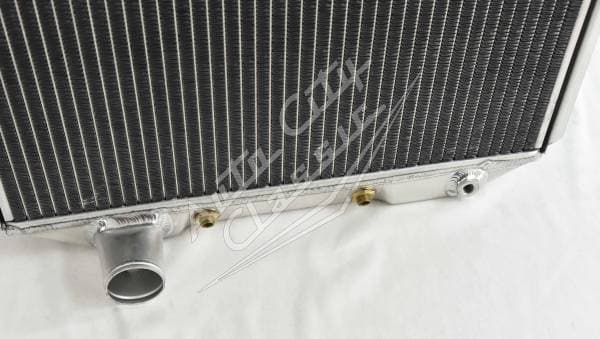

1 1/2" Upper Right Inlet, 2" Lower Left Outlet
Transmission fitting size 1/8-27 NPT
Core size: 19 1/2" wide, 19 3/4" tall, 2 1/2" thick
Overall size (widest point): 23 1/4" wide, 25" tall, 4" thick

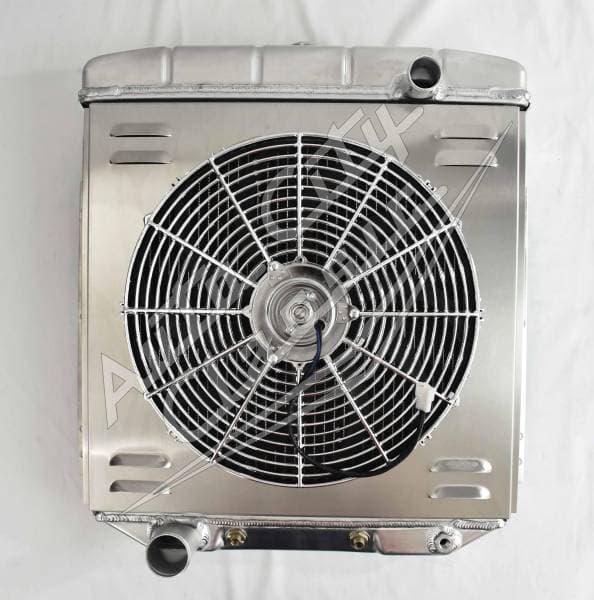

Note: There is an option to add the aluminum shroud and 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.
Questions? 1-800-828-2212
*Lifetime warranty against manufacturer defects.*
