Aluminum Radiator Center, Lower Right- Optional Shroud and Fan (Black or Chrome)
Radiator- 100% Aluminum, 100% Welded- Lifetime Warranty

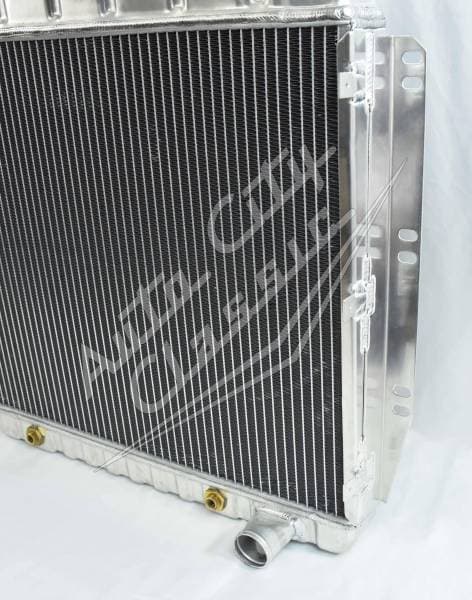

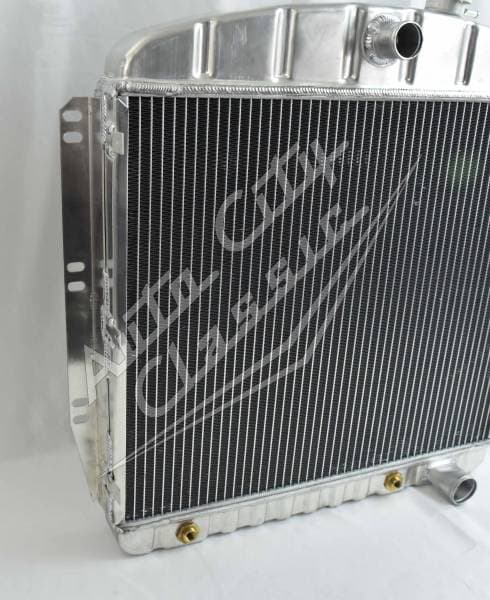

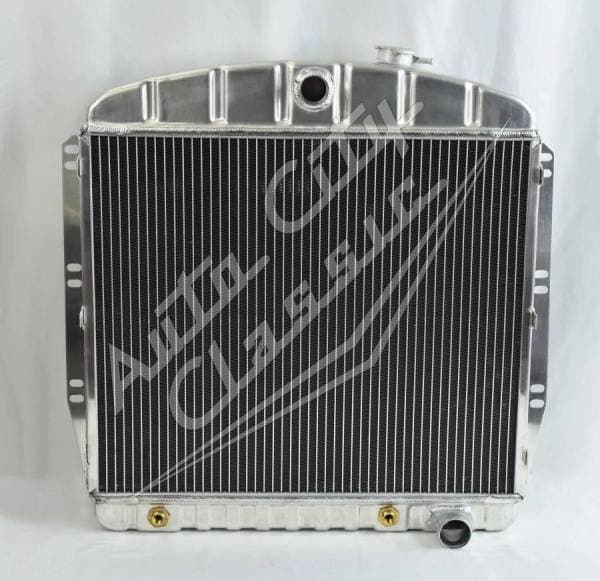

This radiator is a direct bolt in for the 1955 2nd series - 1959 Chevrolet pickup. It is a welded construction, there is no epoxy used in these radiators. Built in transmission cooler has dual 1 1/8" high flow tubes for maximum cooling.

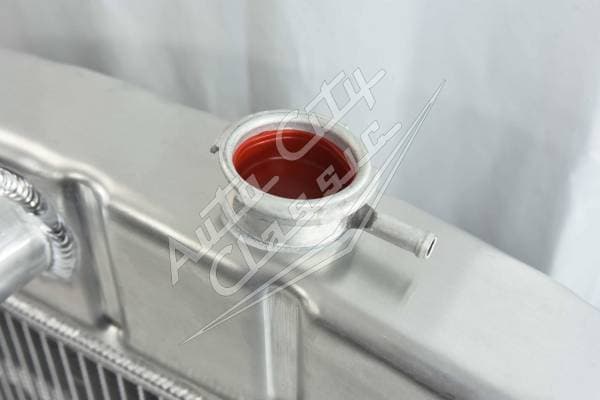

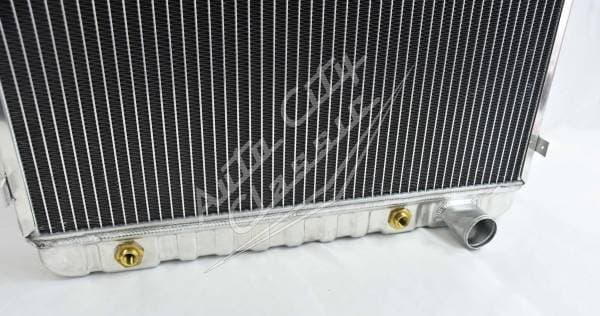

1 1/2" Upper Center Inlet, 1 3/4" Lower Right Outlet
Transmisson fitting size 1/4-18 NPT
Core size: 22 1/2" wide, 19 1/4" tall, 2 1/2" thick
Overall size (widest point): 26 1/2" wide, 26 1/4" tall, 3" thick
Note: There is an option to add the aluminum shroud and 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.
Questions? 1-800-828-2212
*Lifetime warranty is for manufacturers defects only.*
