Aluminum Radiator Left Upper, Right Lower- Optional Shroud and Fan (Black and Chrome)
100% Aluminum, 100% Welded Radiator- Lifetime Warranty
Fits Models: 1957-1960 Ford Pickup Chevy Motor- 327 / 350 / 396 / 454

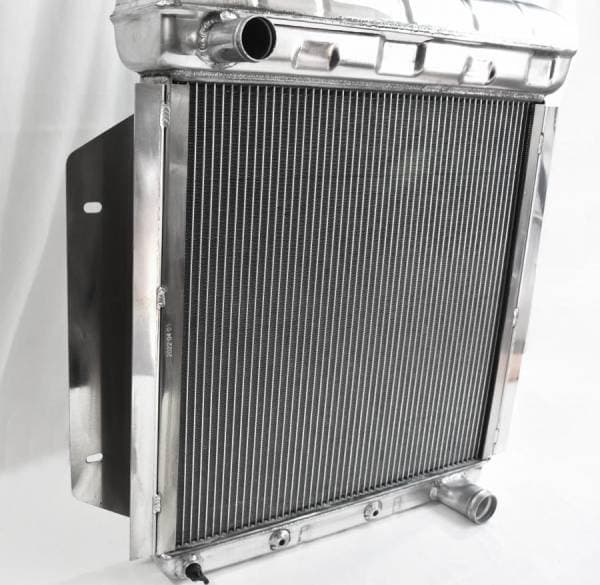

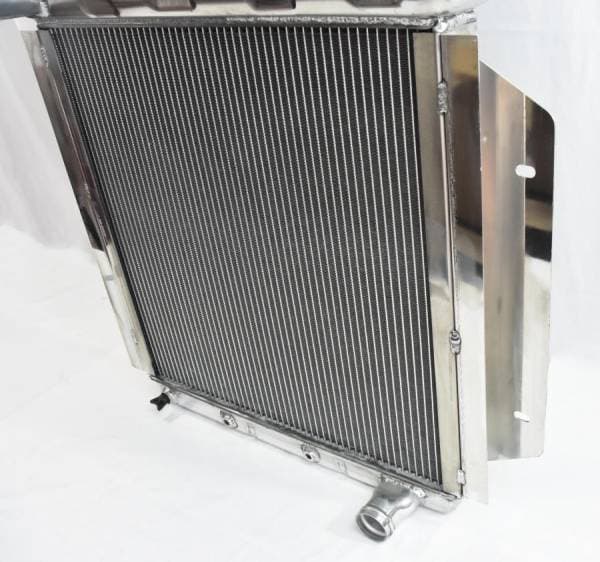

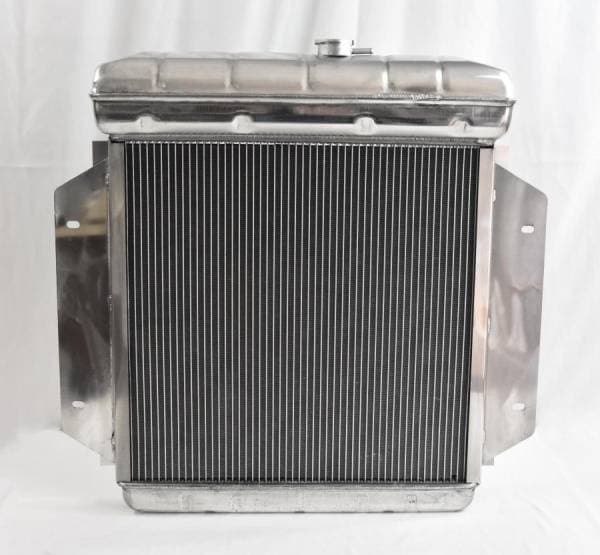

Direct bolt in semi polished aluminum stamped and welded radiator for 57-60 Ford Pickup with Chevy motor. Original style stamped and ribbed tanks with built in transmission cooler. Radiator has dual 1 1/8" high flow tubes for maximum cooling.

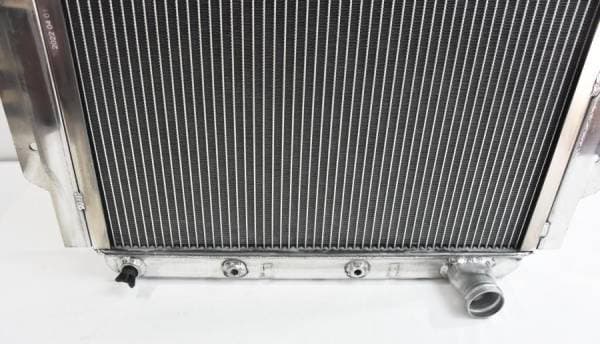

1 1/2" Left Upper Inlet, 1 3/4" Right Lower Outlet
Transmission fitting size 1/8-27 NPT
Core size: 22 3/4" wide, 19 3/4" tall, 2 3/4" thick
Overall size (widest point): 28 1/2" wide, 28" tall, 4" thick
Note: There is an option to add the aluminum shroud and 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.
Questions? 1-800-828-2212
*Lifetime warranty against manufacturer defects.*
