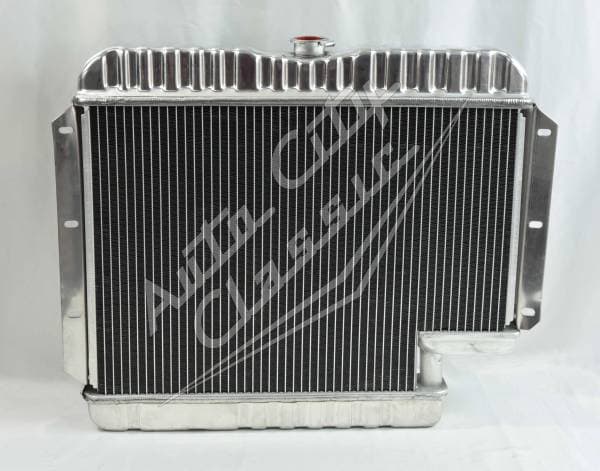

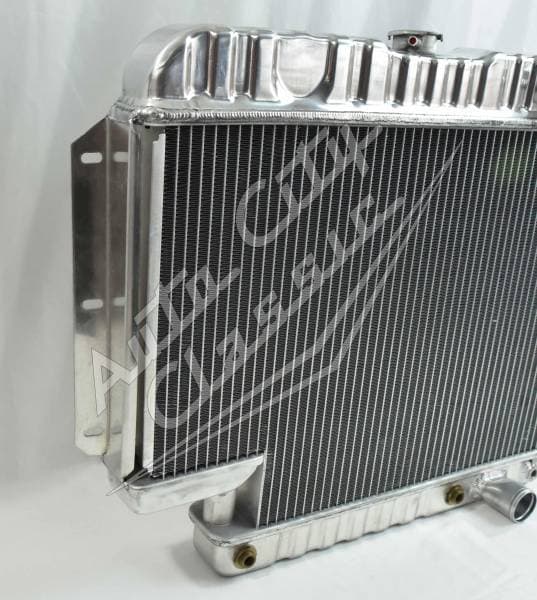

Aluminum Radiator Upper Right, Lower Right- Optional Shroud and Fan (Black or Chrome)

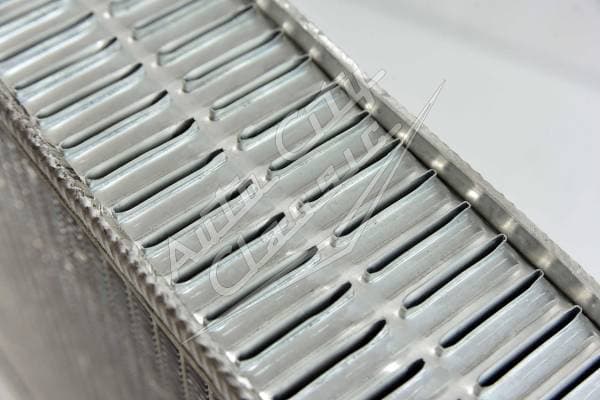

100 % Aluminum, 100 % Welded Radiator- Lifetime Warranty
1959-1963 Chevrolet Passenger Cars; Bel Air Biscayne Del Ray Impala and El Camino with power steering

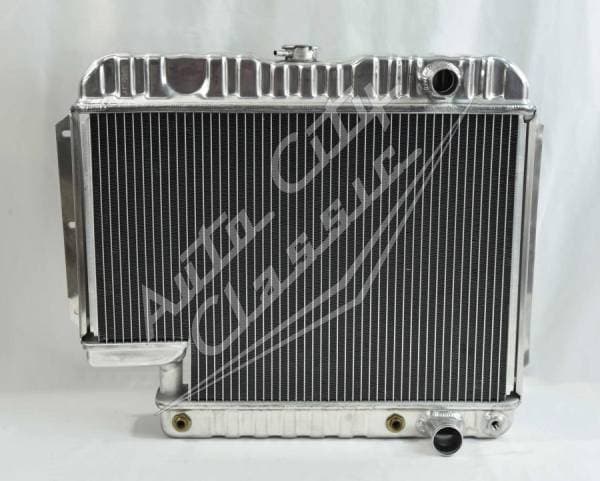

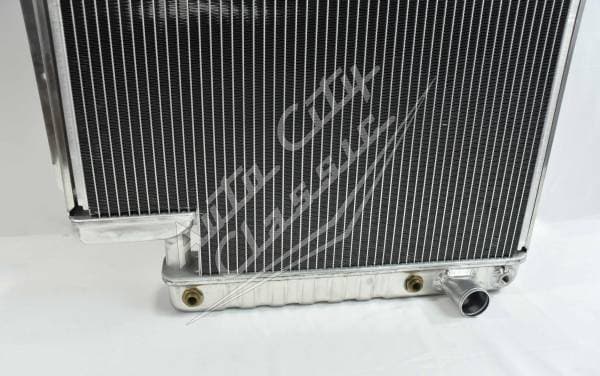

This radiator has a 6" x 6" cutout at bottom of radiator to accommodate the larger steering boxes, such as the 500 and 600 series. Made to factory specs.
Direct bolt in with superior cooling from built in transmission cooler with dual 1 1/8" high flow tubes.

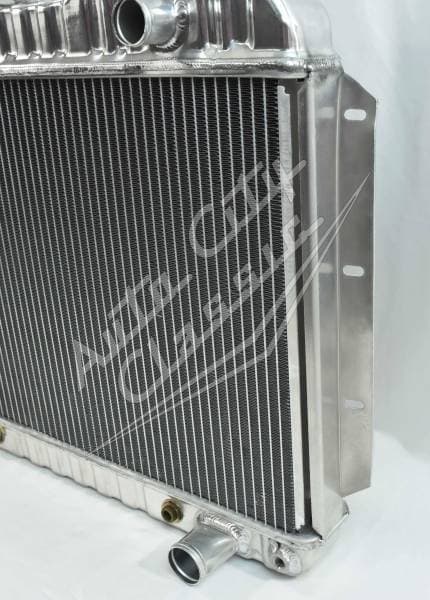

1 1/2" Upper Right Inlet / 1 3/4" Lower Right Outlet
Transmission fitting size 1/4-18 NPT
Core size: 24" wide, 17" tall, 2 1/2" thick
Overall size (widest point): 28" wide, 23" tall, 3" thick

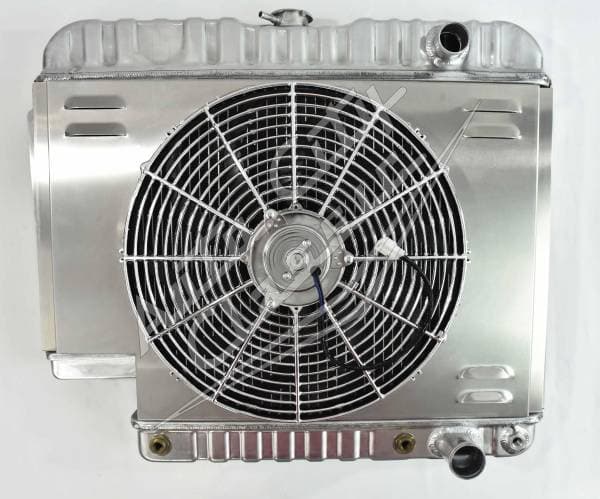

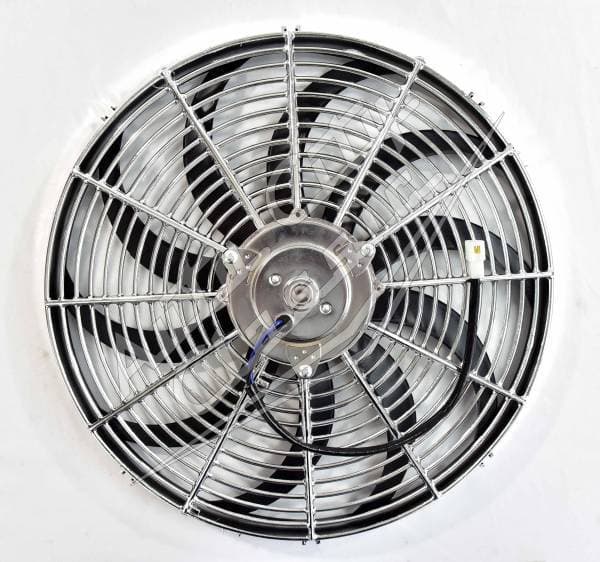

Note: There is an option to add the aluminum shroud and 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.
Questions? 1-800-828-2212
*Lifetime Waranty is for manufacturer defects only.*
