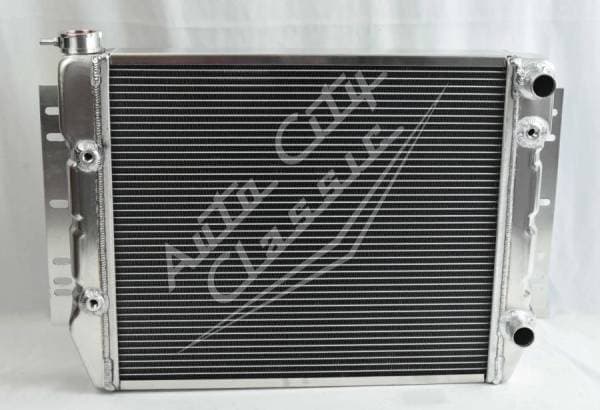

Aluminum Radiator Right Upper, Right Lower- Optional Shroud and Fan (Black or Chrome)
Aluminum Radiator- Lifetime Warranty
Fits Models:
1959-1970 ChevyBel Air, Biscayne, Caprice, Impala Passenger Cars with LS Motor Conversion
1964-1967 Chevy Chevelle with LS Motor Conversion

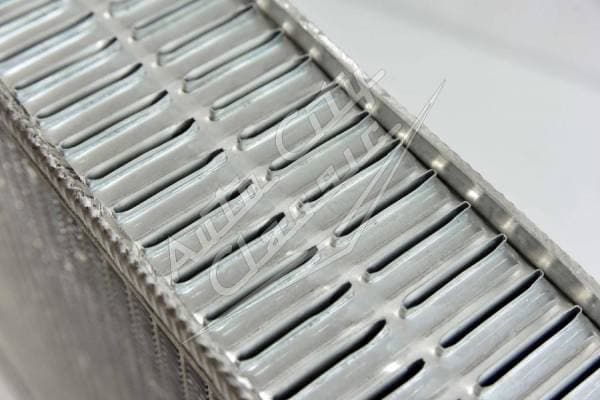

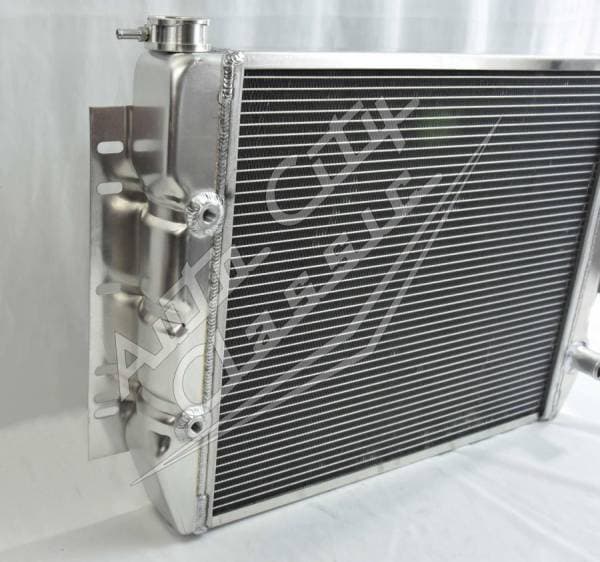

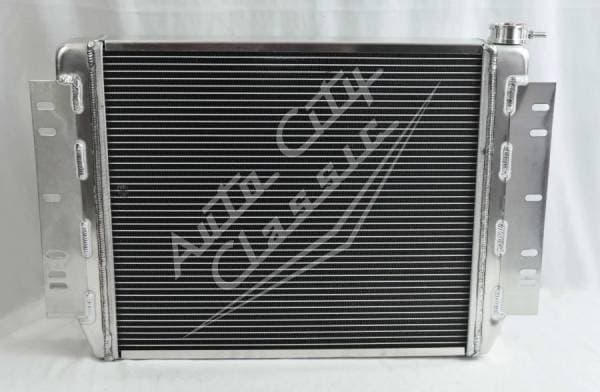

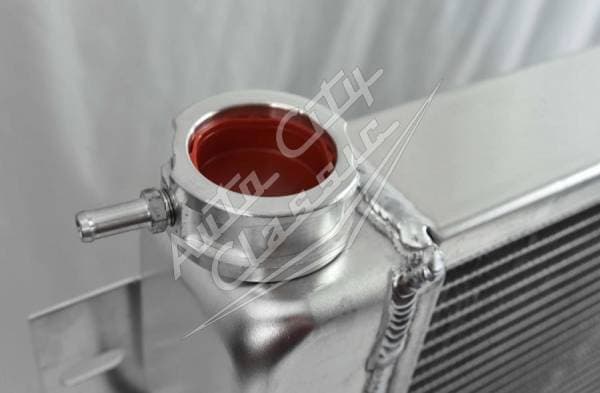

Direct bolt in stamped radiator with dual 1 1/8" high flow tubes that provide maximum cooling. Has built in HD internal transmission cooler and provision for steam port. 1 1/2" mounting flange on each side.

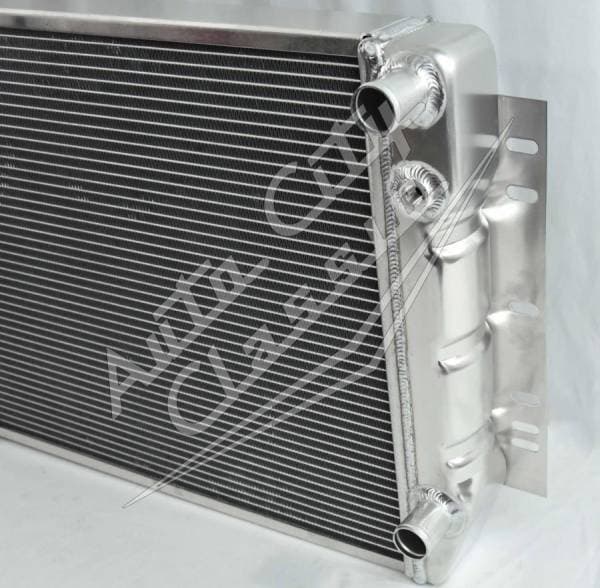

1 1/4" Upper Right Inlet, 1 1/4" Lower Right Outlet
Transmission fitting size 1/4-18 NPT
Core Size: 20 3/4" wide, 18" tall, 2 3/4" thick
Overall Size (widest point): 26 3/4" wide, 18 3/4" tall, 3" thick

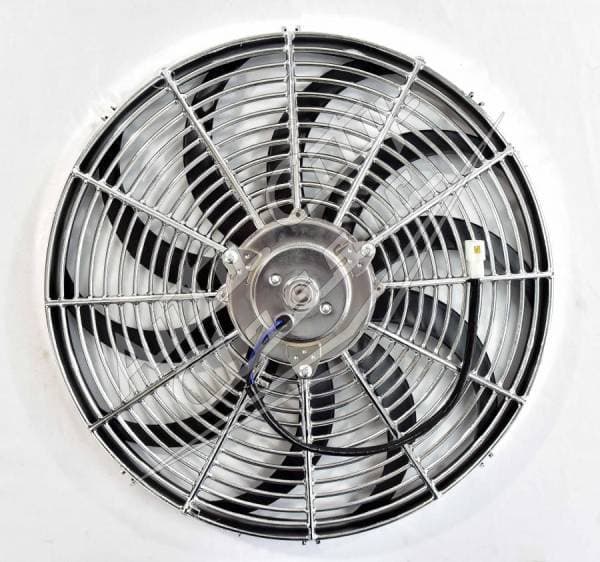

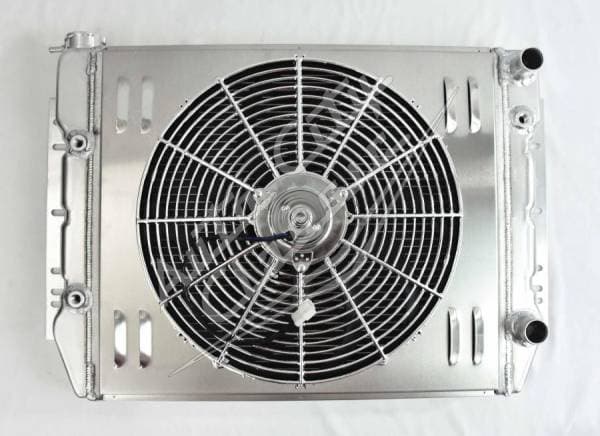

Note: There is an option to add the aluminum shroud and 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.
Questions? 1-800-828-2212
*Lifetime Waranty is for manufacturer defects only.*
