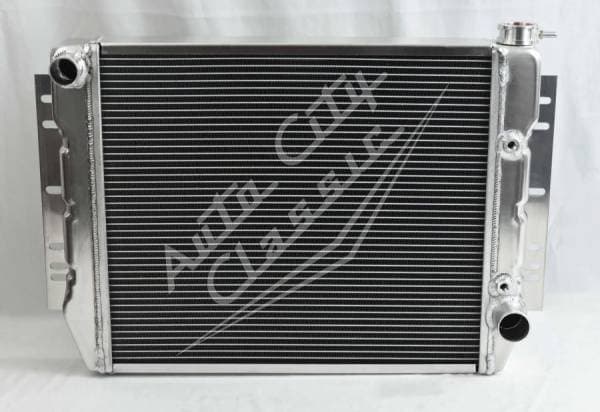

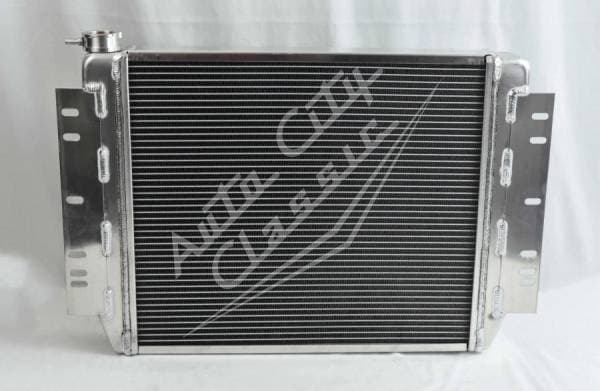

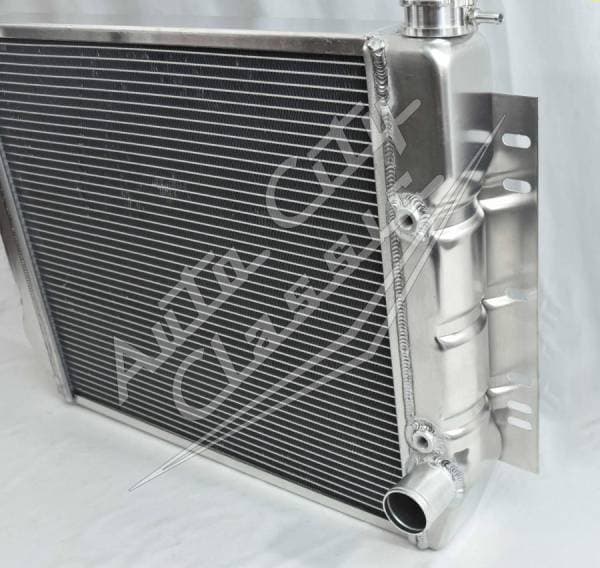

Aluminum Radiator Upper Left, Lower Right- Optional Shroud and Fan (Black or Chrome)
Aluminum Radiator- Lieftime Warranty
Fits Models:
1959-1970 Chevrolet Passenger Cars Bel Air, Biscayne, Caprice, Del Ray, Impala, El Camino cross flow replacement, works with 500 box
1967-1969 Chevy Camaro and Pontiac Firebird Small Block without AC

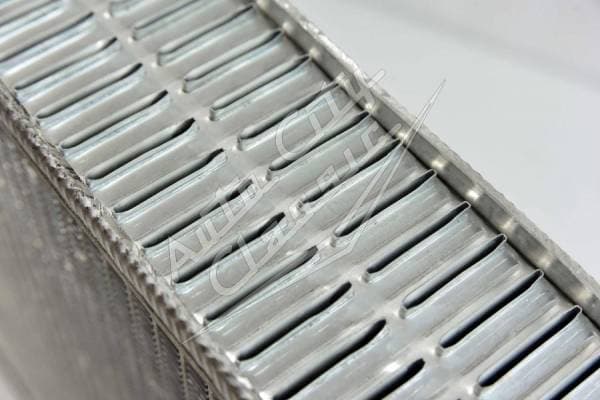

Stamped and ribbed direct bolt in cross flow replacement radiator. 1 1/2" mounting flange on each side. Great gm configuration for retro fit applications with Chevy motors. Dual 1 1/8" high flow tubes for maximum cooling.

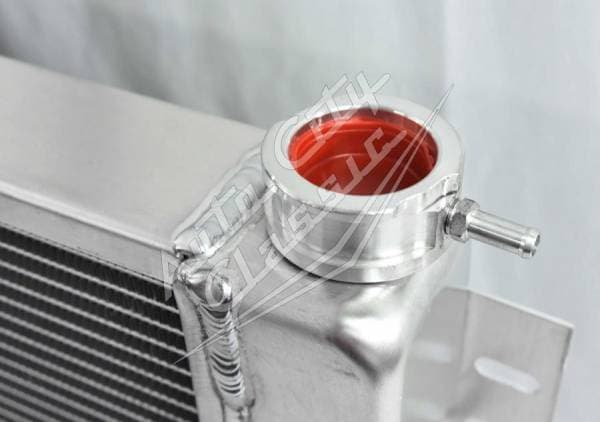

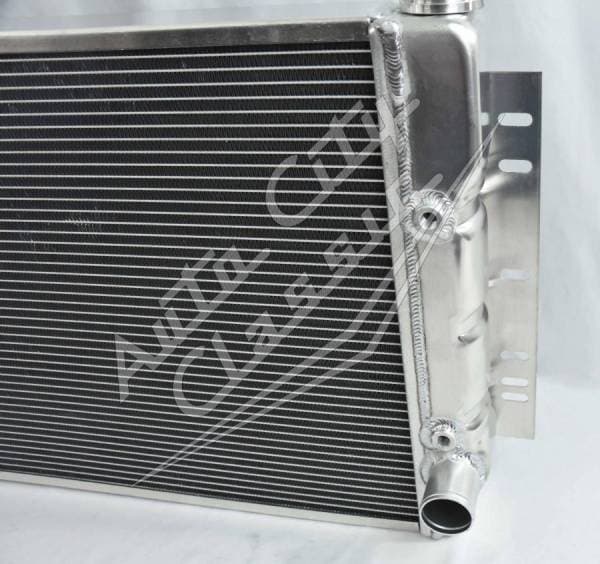

1 1/2" Upper Left Inlet, 1 3/4" Lower Right Outlet
Transmission fitting size 1/4-18 NPT
Core Size: 20 3/4" wide, 18 3/4" tall, 2 1/2" thick
Overall Size (widest points): 28 9/16" wide, 18 3/4" tall, 3" thick

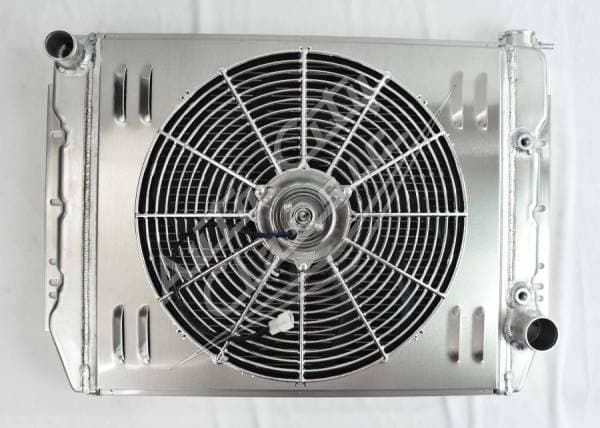

Note: There is an option to add the aluminum shroud and 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.
Questions? 1-800-828-2212
*Lifetime Waranty is for manufacturer defects only.*
