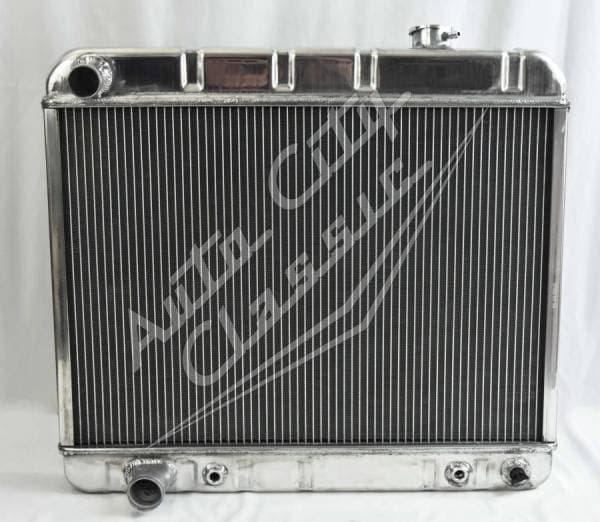

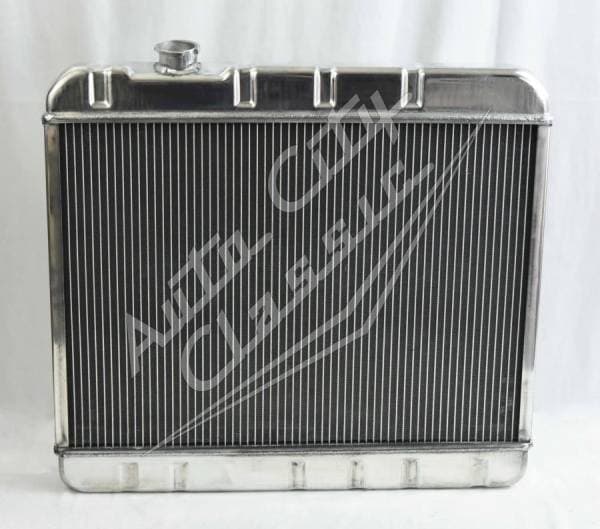

Aluminum Radiator Left Upper, Left Lower- Optional Shroud and Fan (Black or Chrome)
100% Aluminum, 100% Welded Radiator- Lifetime Warranty
Fits Models:
1960-1965 Cadillac
Stamped and welded construction sets this apart from the rest. Direct replacement for 60-65 Cadillac models. Original style stamped and ribbed tanks with built in transmission cooler. Radiator has dual 1 1/8" high flow tubes for maximum cooling.

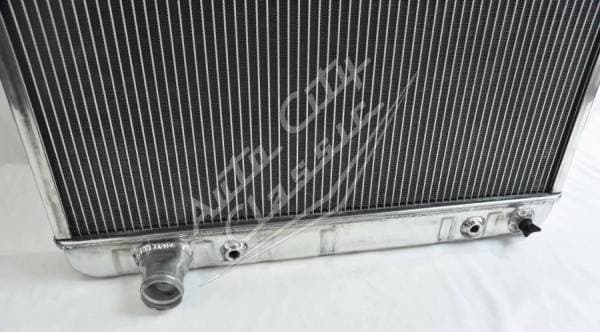

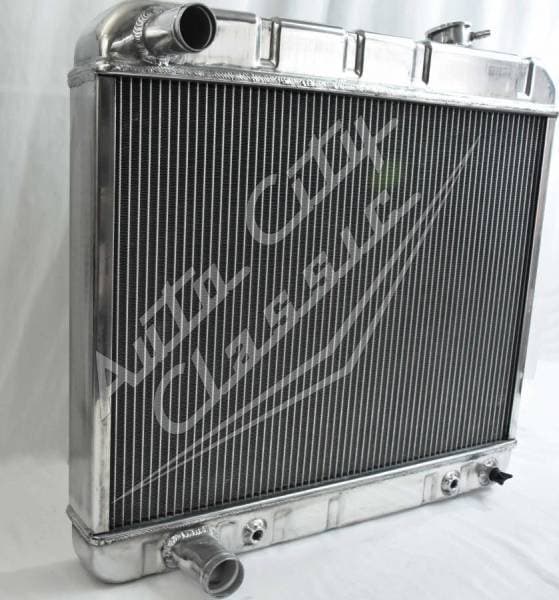

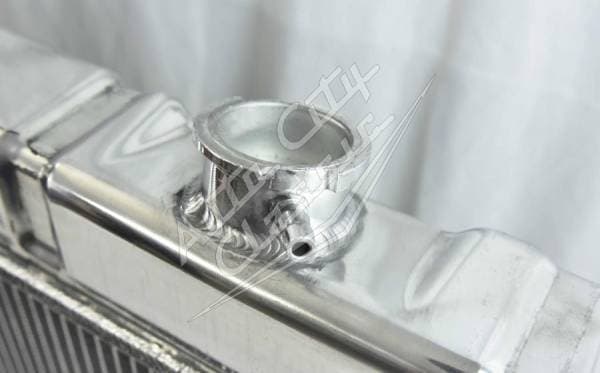

1 1/2" Left Upper Inlet, 1 3/4" Left Lower Outlet
(check inlet and outlet positions)
Transmission fitting size 1/4-1/8 NPT
Core size: 25" wide, 17" tall, 2 1/2" thick
Overall size (widest points): 25 1/4" wide, 23 1/4" tall, 3" thick

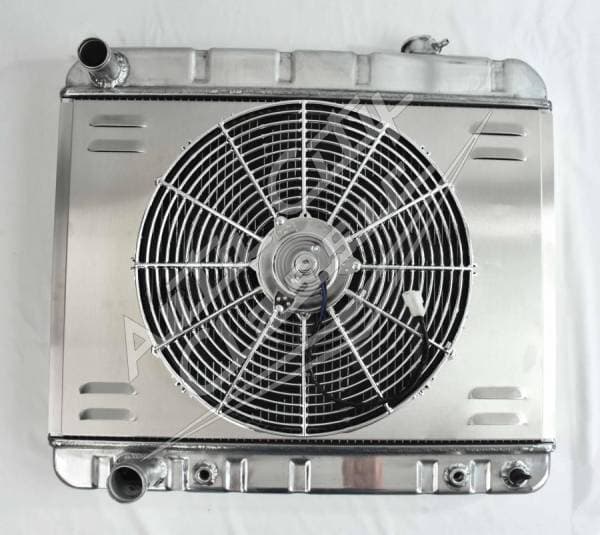

Note: There is an option to add the aluminum shroud and 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.
Questions? 1-800-828-2212
*Lifetime Waranty is for manufacturer defects only.*
