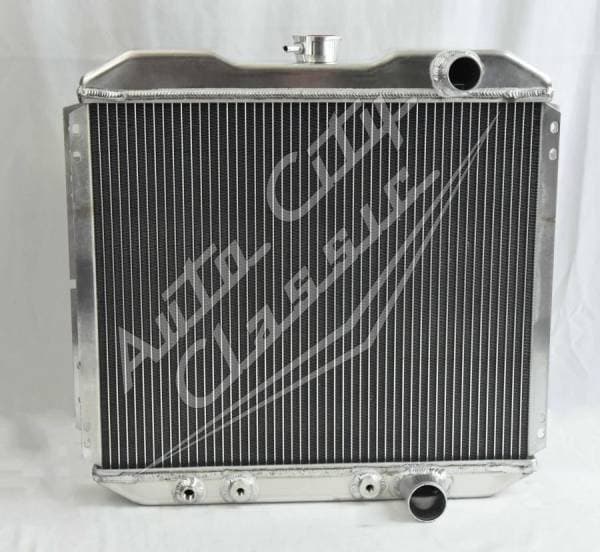

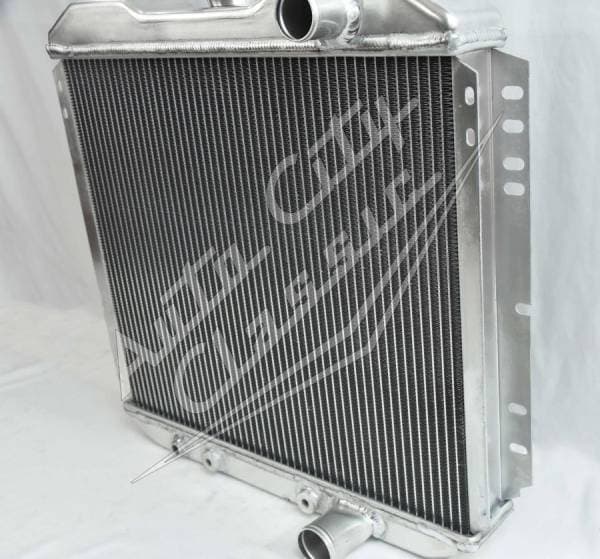

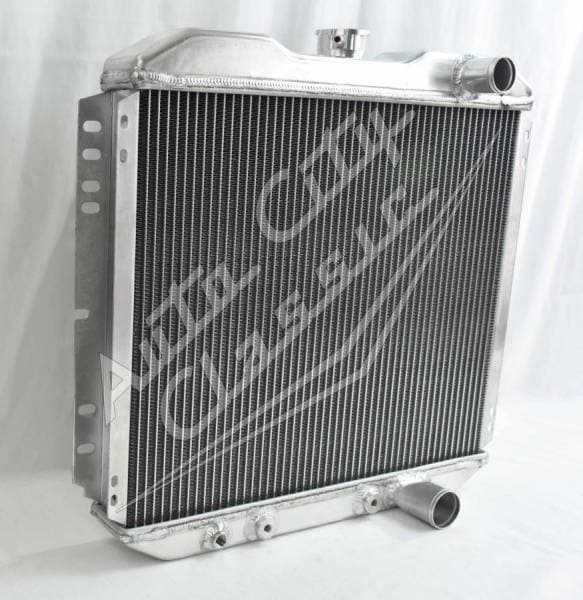

Aluminum Radiator Upper Right, Lower Right- Optional Shroud and Fan (Black or Chrome)
100% Aluminum, 100% Welded Radiator- Lifetime WarrantyFits Models: Ford and Mercury 289 and 302 Small BlockFord1963-1968 Galaxie Small Block
1963-1968 LTD1963-1969 Fairlane Small Block V8
1963-1969 Torino Small Block1966-1969 Falcon
1966-1969 Ranchero Small Block1967-1970 Mustang Small BlockMercury1966-1969 Comet Small Block1967-1970 Cougar Small BlockStamped and welded construction sets this apart from the rest. Direct replacement original style ribbed tank. Radiator has built in transmission cooler- dual 1 1/8" high flow tubes for maximum cooling.
*Check your inlet and outlet position.*

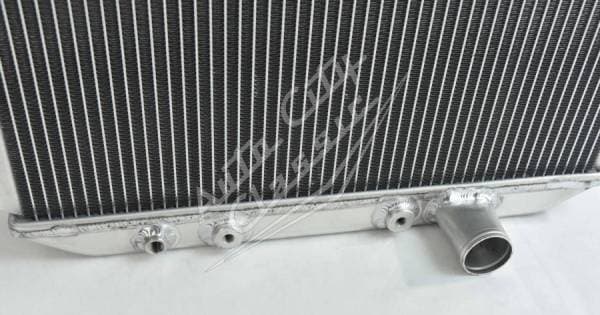

1 1/2" Upper Right Inlet, 1 3/4" Lower Right Outlet
Transmission fitting size 1/8-27 NPTCore size: 19 1/2" wide, 16 1/2" tall, 2 1/4" thickOverall size: 20 1/2" wide, 21 1/4" tall, 3" thick

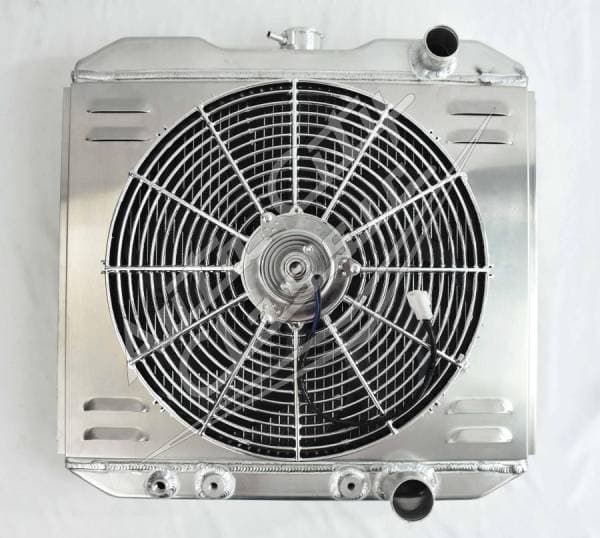

Note: There is an option to add the aluminum shroud and 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.Questions? 1-800-828-2212 *Lifetime Warranty is for manufacturer defects only.*
