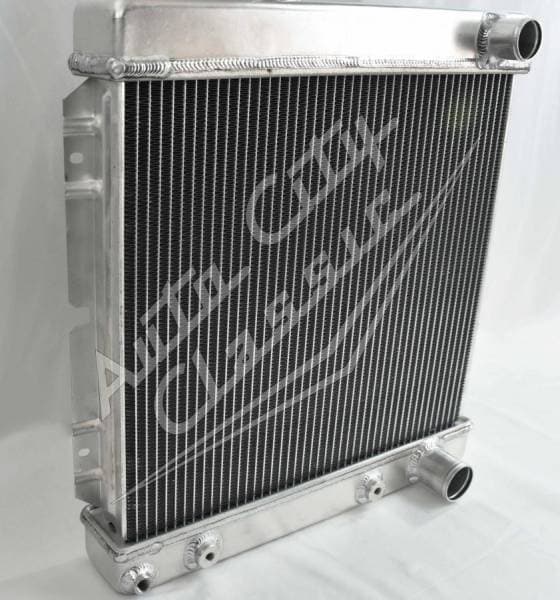

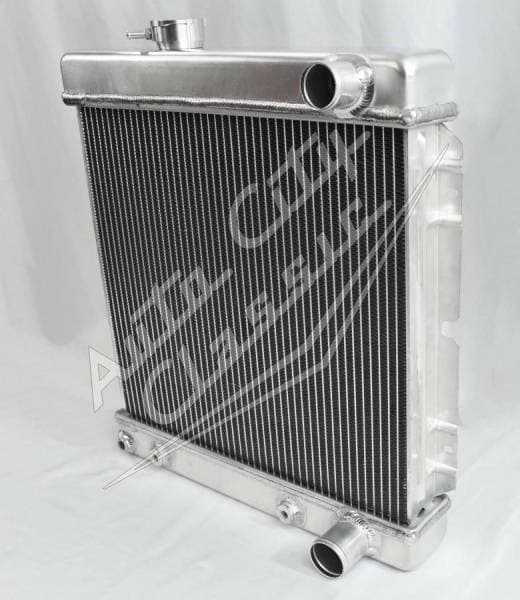

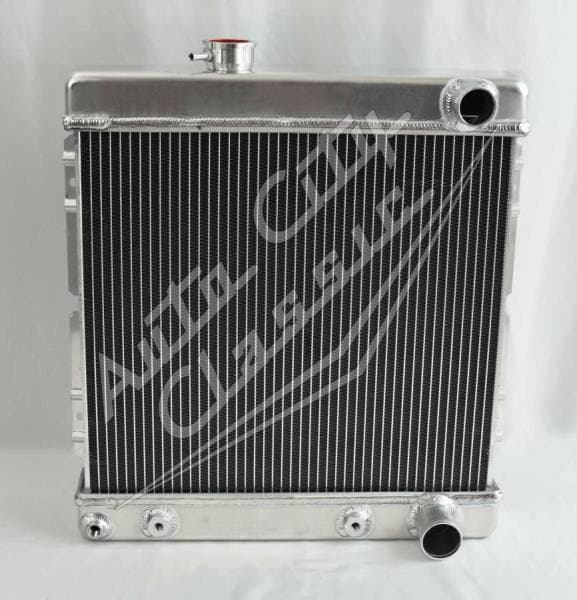

1964-1966 Ford Mustang / Falcon and Mercury Comet / Cyclone Aluminum Radiator SL-090-AT

Aluminum Radiator Right Upper, Right Lower- Optional Shroud and Fan (Black or Chrome)

Radiator- 100% Aluminum; 100% Welded

Fits Models: Stock V8 260/289 (Note: Does not fit 6 Cylinder)
Ford
1963-1965 Falcon
1963-1965 Ranchero V8 260/289
1964-1966 Mustang

Mercury
1963-1965 Comet V8 260/289
1963-1965 Cyclone Small Block

Direct replacement reproduction aluminum radiator with stamped tanks and welded construction. Radiator has built in transmission cooler and dual 1 1/8" high flow tubes for maximum capacity and cooling.

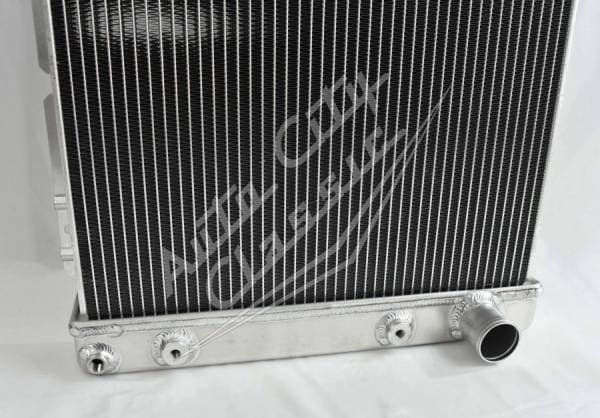

1 1/2" Right Upper Inlet, 1 3/4" Right Lower Outlet

Transmission fitting size 1/8-27 NPT

Core size: 17 3/4" wide, 16" tall, 2 1/4" thick
Overall size: 19 1/2" wide, 21 1/4" tall, 3" thick

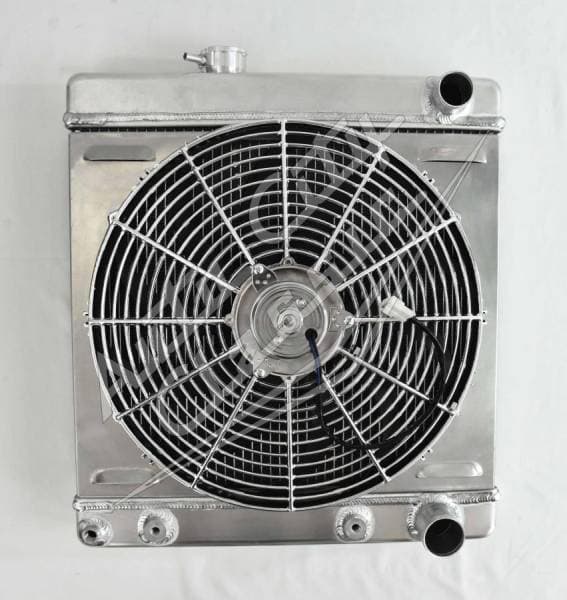

Note: There is an option to add the aluminum shroud and 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.

Questions? 1-800-828-2212
