Aluminum Radiator Right Upper, Left Lower- Optional Shroud and Fan (Black or Chrome)
Radiator- 100% Aluminum; 100% Welded
Fits Models: V8 Conversions 302/351 (Note: 6 Cylinder must use larger size hoses with internal transmission cooler due to Inlet and Outlet being larger than the original.)
Ford
1960-1965 Ranchero 6 Cylinder
1963-1965 Falcon 6 Cylinder
1964-1966 Mustang
Mercury
1960-1965 Comet and Cyclone 6 Cylinder

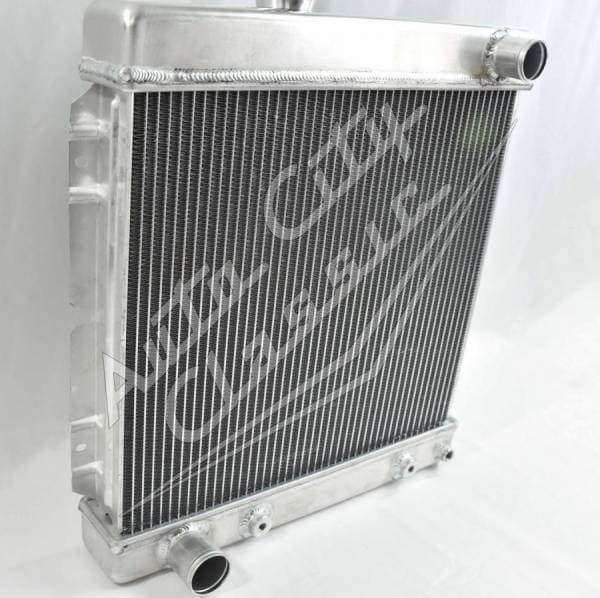

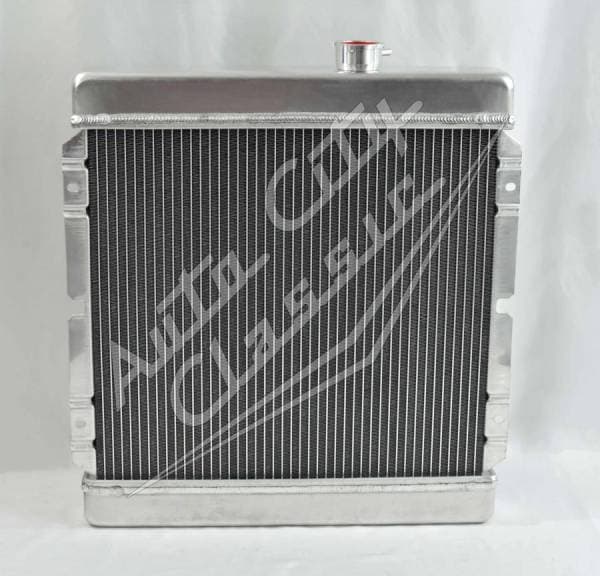

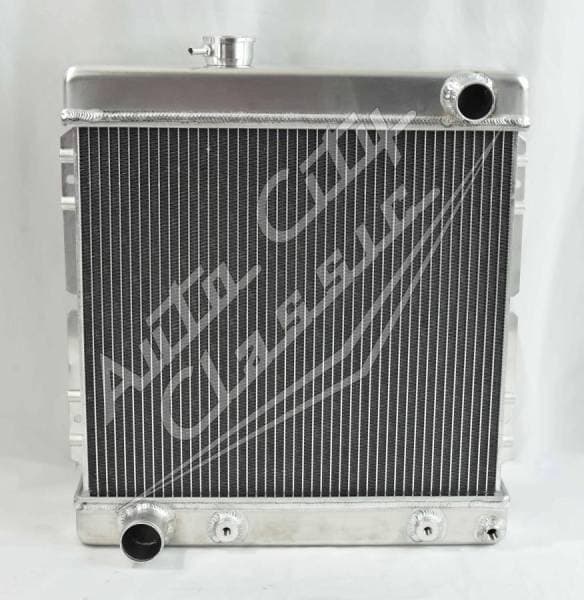

Direct replacement reproduction aluminum radiator with stamped tanks and welded construction. Radiator has built in transmission cooler and dual 1 1/8" high flow tubes for maximum capacity and cooling.
1 1/2" Right Upper Inlet, 1 3/4" Left Lower Outlet
Transmission fitting size 1/8-27 NPT
Core size: 17 3/4" wide, 16" tall, 2 1/4" thick
Overall size: 19 1/2" wide, 21 1/4" tall, 3" thick
Note: There is an option to add the aluminum shroud and 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.
Questions? 1-800-828-2212
