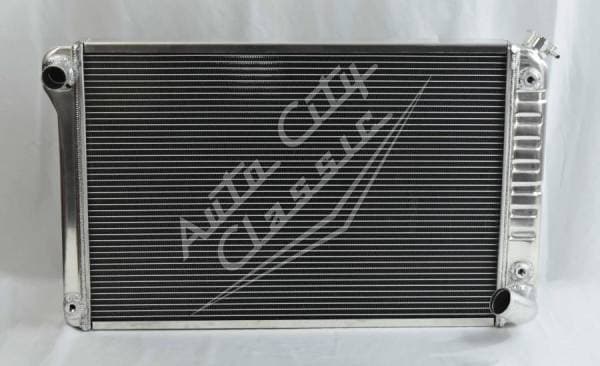

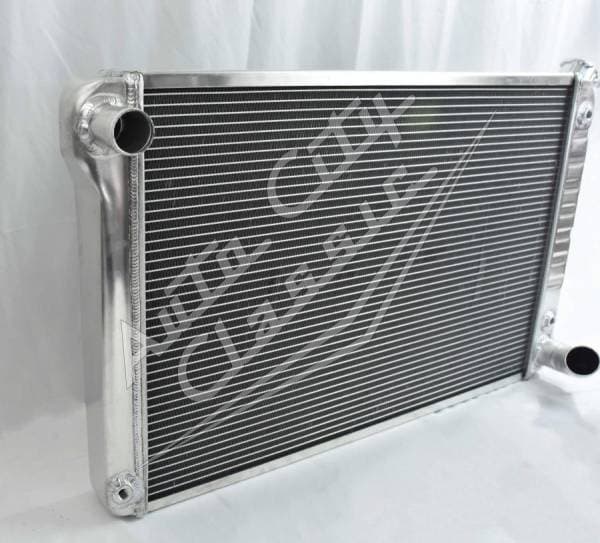

Aluminum Radiator Upper Left, Lower Right- Optional Shroud and Fan (Black or Chrome)
100% Aluminum, 100% Welded Radiator- Lifetime Warranty
Fits Models:
Chevrolet
1977-1979 Corvette with V8
Pontiac
1965-1967 Bonneville, Catalina & Grand Prix V8 389 / 400 / 421 / 428
Direct replacement bolt in aluminum radiator with built in transmission cooler and dual 1 1/8" high flow tubes for maximum cooling.

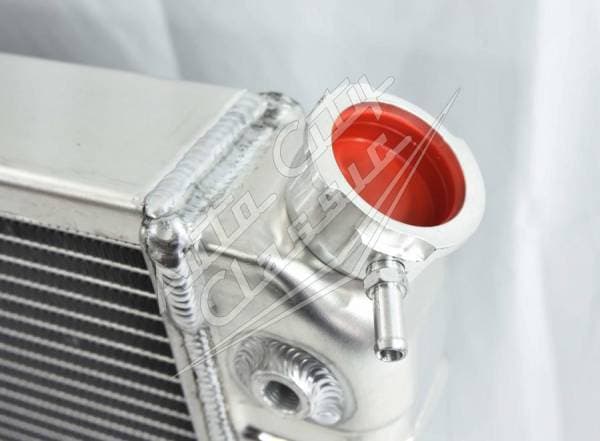

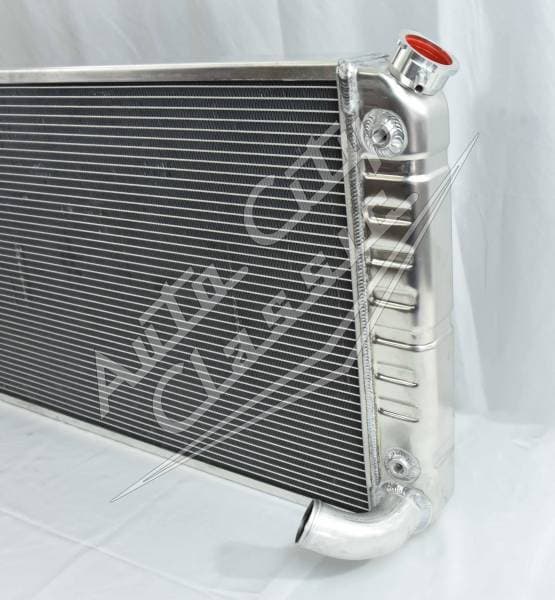

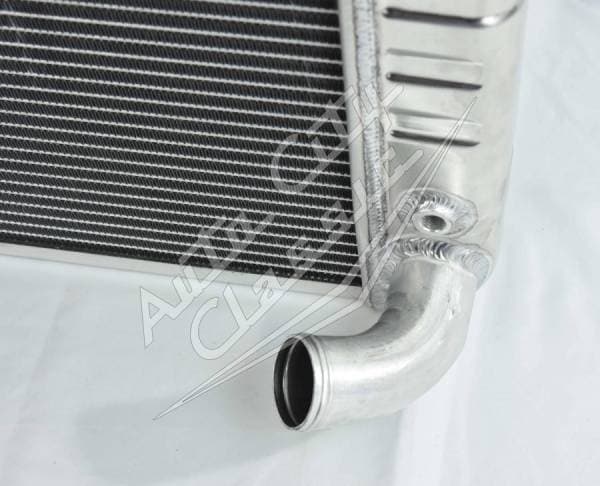

1 1/2" Upper Left Inlet, 1 3/4" Lower Right Outlet
Transmission fitting size 1/4-18 NPT
Core Size: 26 1/2" wide, 17 1/2" tall, 2 1/2" thick
Overall Size (widest point): 31 1/2" wide, 18 3/4" tall, 3" thick

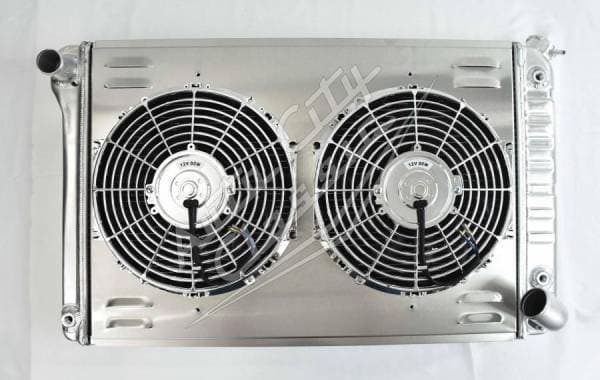

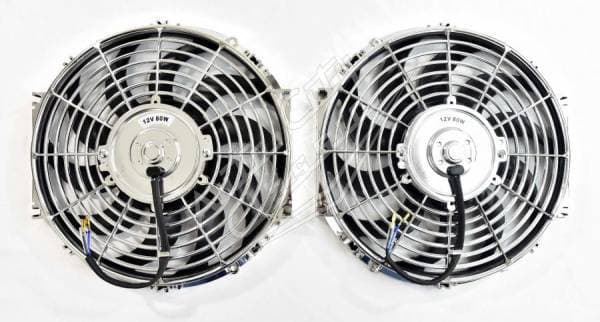

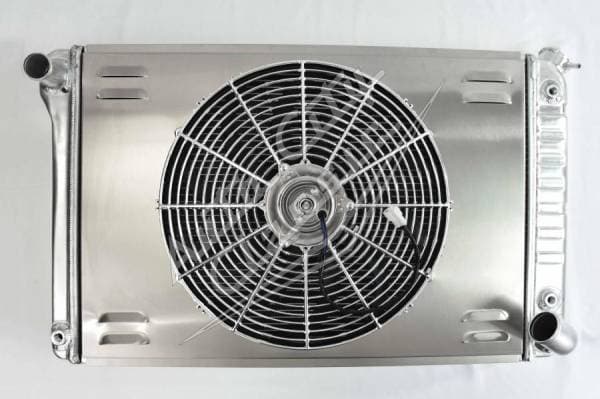

Note: There is an option to add the single or dual aluminum shroud and dual 12" or single 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.
Questions? 1-800-828-2212
*Lifetime Waranty is for manufacturer defects only.*
