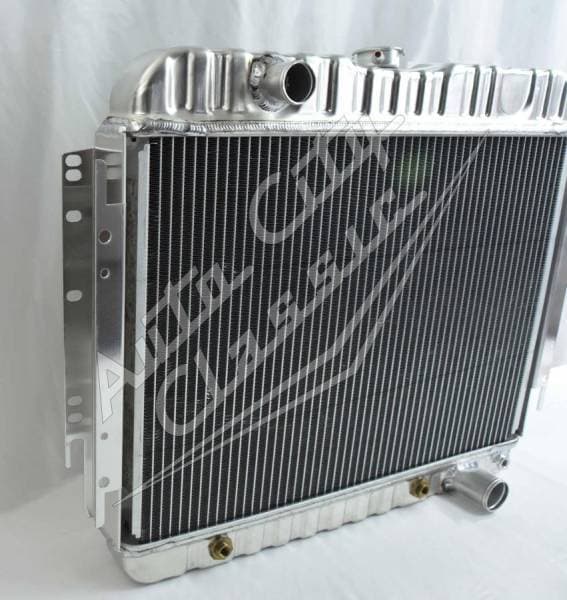

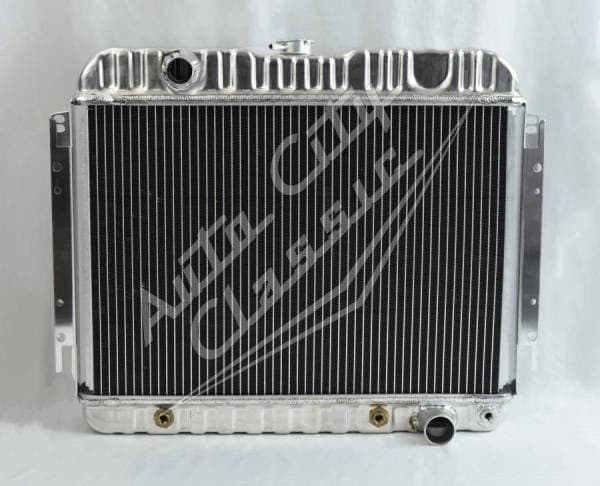

Aluminum Radiator Upper Left, Lower Right-Optional Shroud and Fan (Black or Chrome)
100% Aluminum Radiator, 100% Welded- Lifetime Warranty
Fits Models: 1965-1970 Chevrolet Passenger Cars Bel Air, Biscayne, Caprice, Impala Engine size 396, 427, 454
(Will fit some small blocks 283, 327, 350- confirm your measurements)

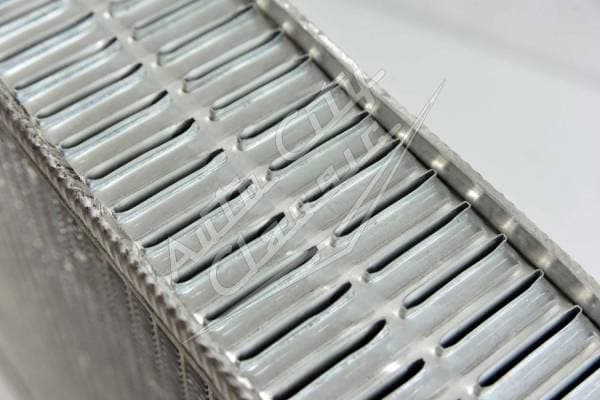

Direct bolt in stamped and ribbed aluminum radiator. Comes with internal transmission cooler- dual 1 1/8" high flow tubes for maximum cooling.

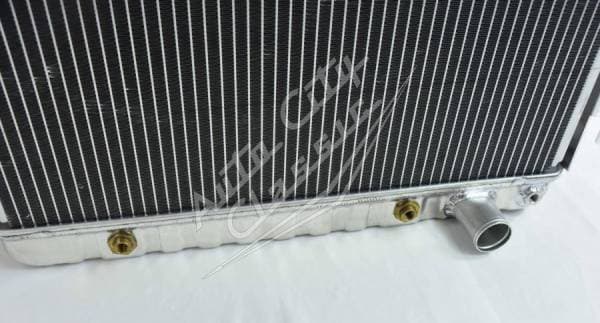

1 1/2" Upper Left Inlet, 1 3/4" Lower Right Outlet
(1965 models check inlet and outlet configuration)
Transmission fitting size 1/4-18 NPT
Core size: 23 1/2" wide, 16 3/4" tall, 2 1/2" thick
Overall size (widest points): 28" wide, 22 3/4" tall, 3" thick

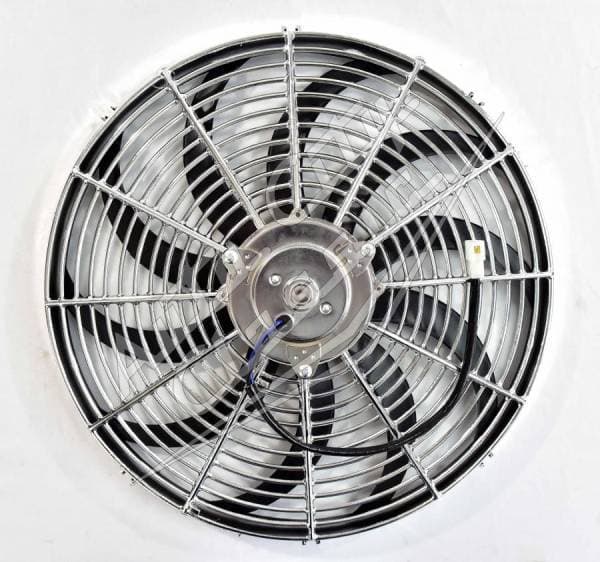

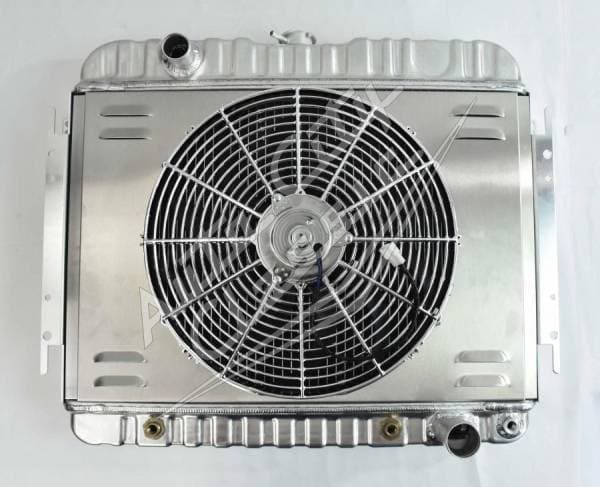

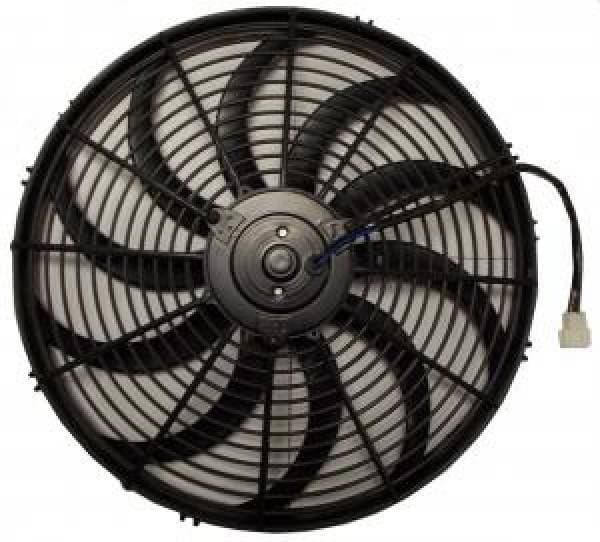

Note: There is an option to add the aluminum shroud and 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.
Questions? 1-800-828-2212
*Lifetime Warranty is for manufacturer defects only. *
