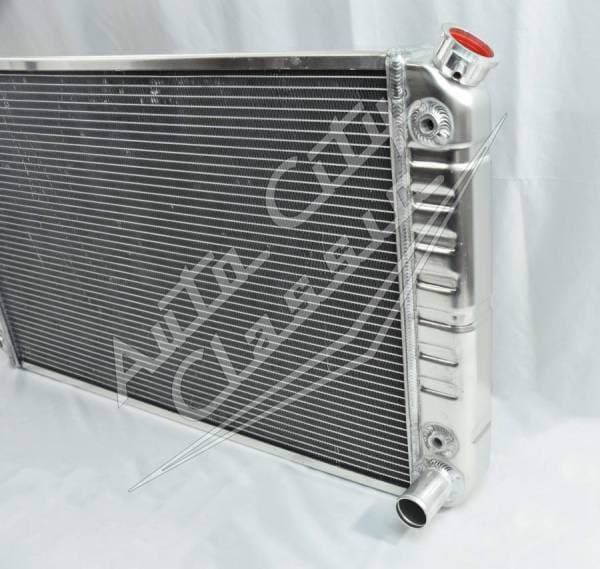

Aluminum Radiator Upper Left, Lower Right- Optional Shroud and Fan (Black or Chrome)
100% Aluminum, 100% Welded Radiator- Lifetime Warranty
Fits Models: 1966-1977 GM A-Body
Buick
1967-1976 Electra V8 except 401/425
1968-1973 GS V8
1967-1976 Invicta V8 except 401/425
1965-1976 LeSabre V8
1967-1969 Riviera 430, 1970-1971 350/455, 1971-1976 V8
1968-1973 Skylark V8
1967-1971 Wildcat 350/400/430/455, 1972-1976 350/455
Chevrolet
1968-1977 Chevelle V8 28" Core
1968-1977 Monte Carlo 28" Core
1968-1977 El Camino 28" Core
Oldsmobile
1966-1974 442 V8, 1975-1976 442 Without Heater Return or Low Coolant
1965-1970 88/98 V8, 1971-1973 88/98 V8 350/455
1966-1967 Toronado V8 425
Pontiac
1968-1971 Bonneville V8
1972-1976 Bonneville 350/400/455
1968-1971 Catalina V8
1972-1976 Catalina 350/400/455
1970-1981 Firebird & Trans AM V8
1968-1977 GTO, Tempest, Lemans V8 Small Block and Big Block
1968-1976 Grand Prix V8

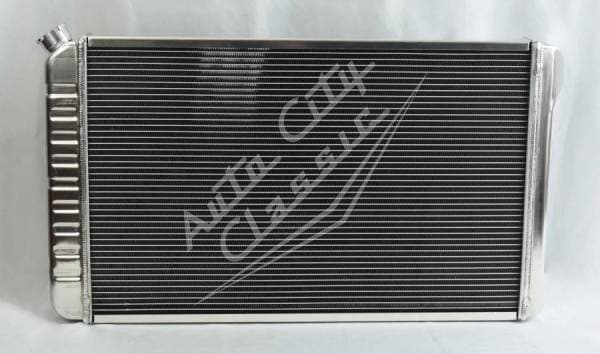

Stamped and ribbed direct bolt in replacement for GM 28 1/4" wide core radiator. Has built in transmission cooler with dual 1 1/8" high flow tubes for maximum cooling.

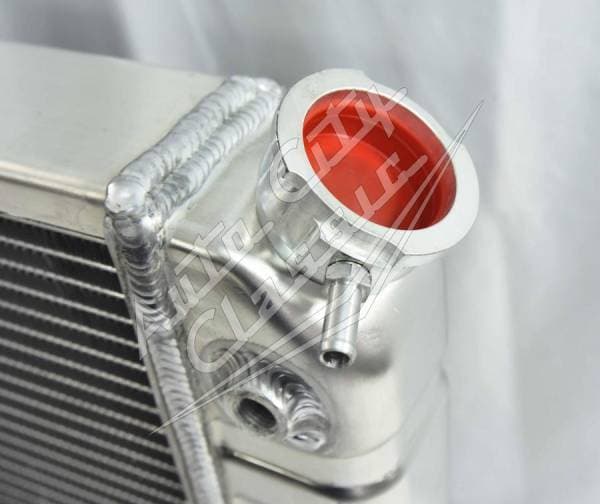

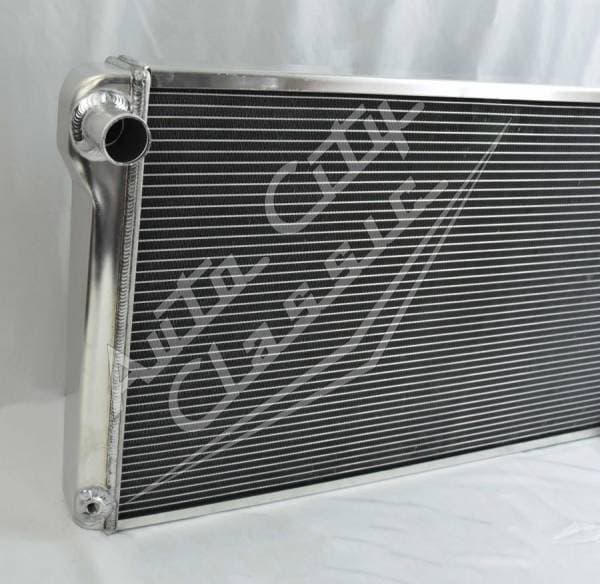

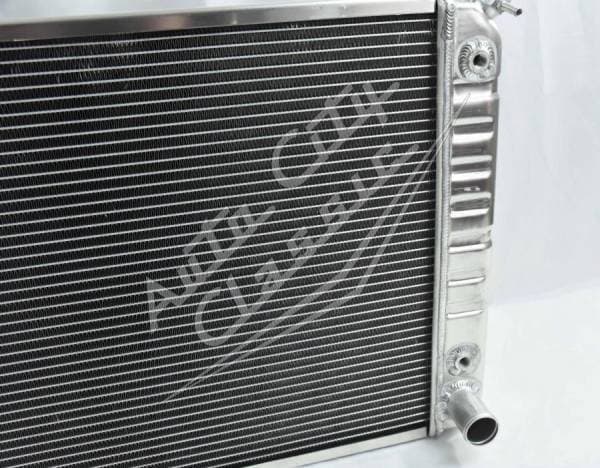

1 1/2" Upper Left Inlet, 1 1/2" Lower Right Outlet
Transmission fitting size 1/4-18 NPT
Core size: 28 1/4" wide, 18 3/4" tall, 2 1/2" thick
Overall size (widest point): 33 1/2" wide, 18 3/4" tall, 3" thick

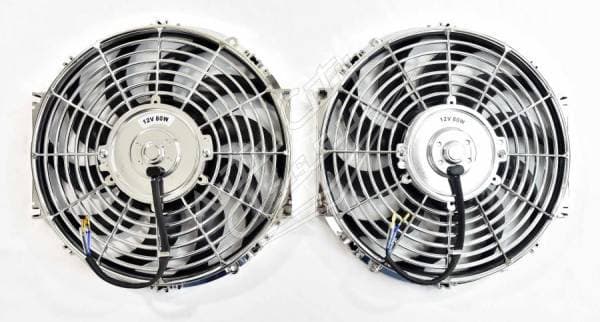

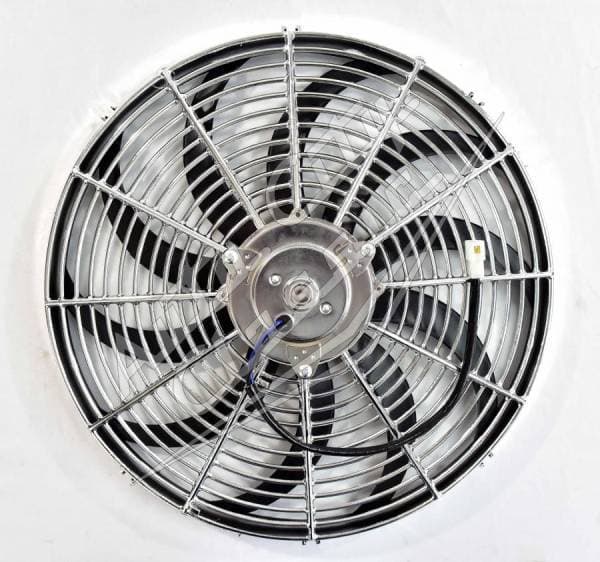

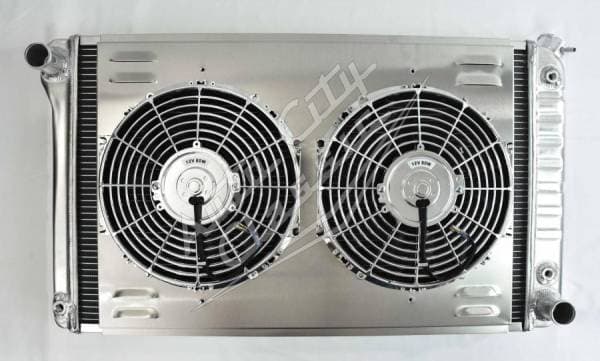

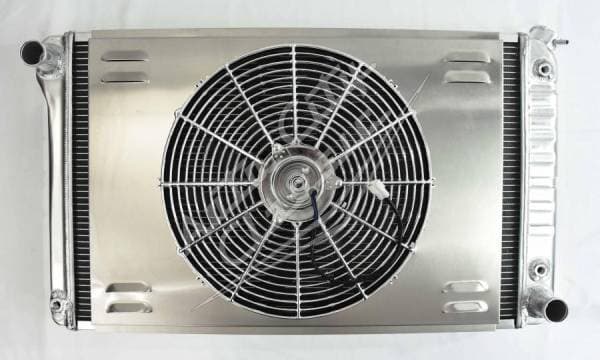

Note: There is an option to add the single or dual aluminum shroud and dual 12" or single 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.
Questions? 1-800-828-2212
*Lifetime Warranty is for manufacturer defects only.*
