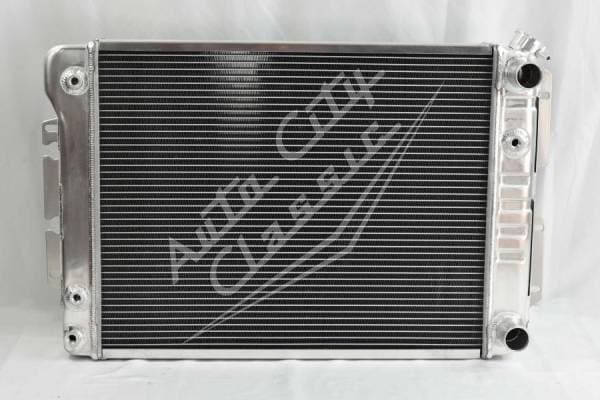

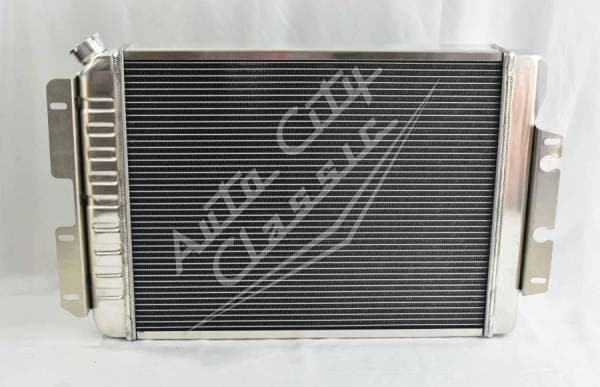

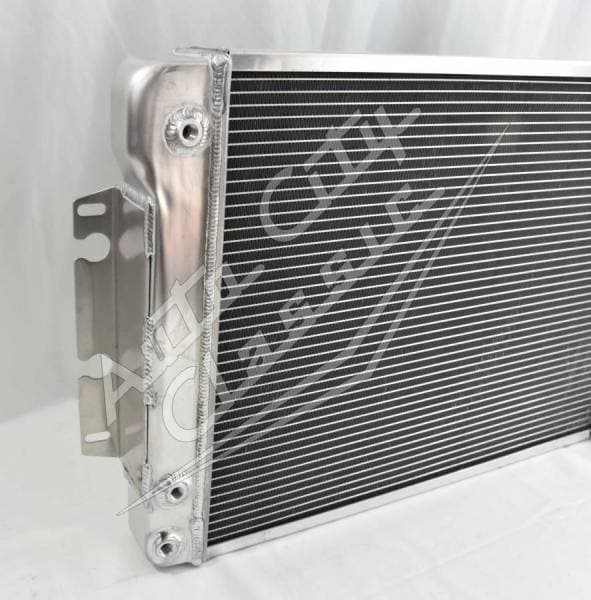

Aluminum Radiator Upper Right, Lower Right- Optional Shroud and Fan (Black or Chrome)
100% Aluminum, 100% Welded Radiator- Lifetime Warranty
Fits Models:
Chevrolet
1967-1969 Camaro with LS Motor Conversion
1968-1974 Nova with LS Motor Conversion
Pontiac
1967-1969 Firebird & Trans Am Small Block with AC
Stamped and ribbed direct bolt in radiator for Camaro and Firebird. Nova does not use mounting brackets. Provision for steam port. Comes with built in transmission cooler with dual 1 1/8" high flow tubes for efficent cooling.

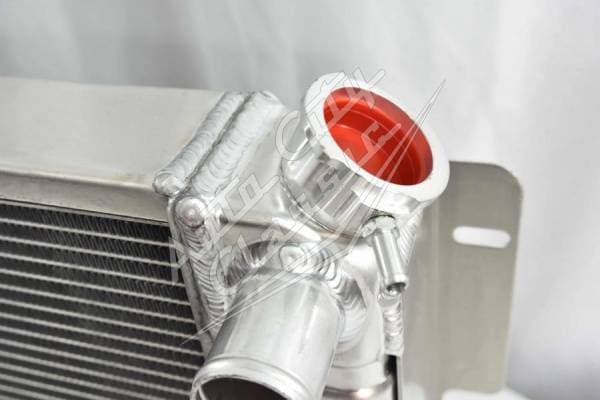

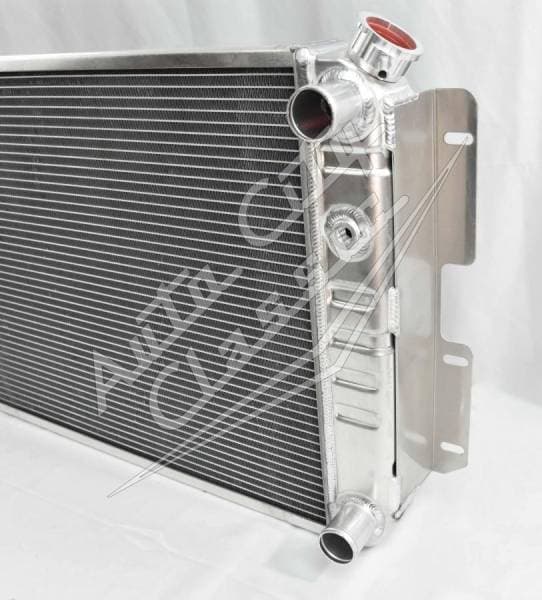

1 1/2" Upper Right Inlet, 1 1/2" Lower Right Outlet both on the hand side
Transmission fitting size 1/4-18 NPT
Core size: 23" wide, 18 3/4" tall, 2 1/2" thick
Overall size (widest point): 28 1/2" wide, 18 3/4" tall, 3" thick

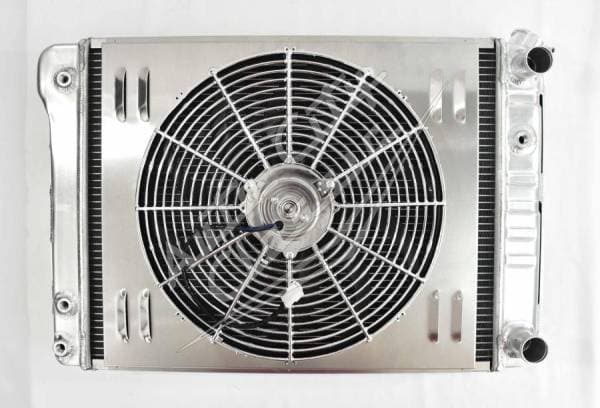

Note: There is an option to add the aluminum shroud and 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.
Questions? 1-800-828-2212
*Lifetime Warranty is for manufacturer defects only.*
