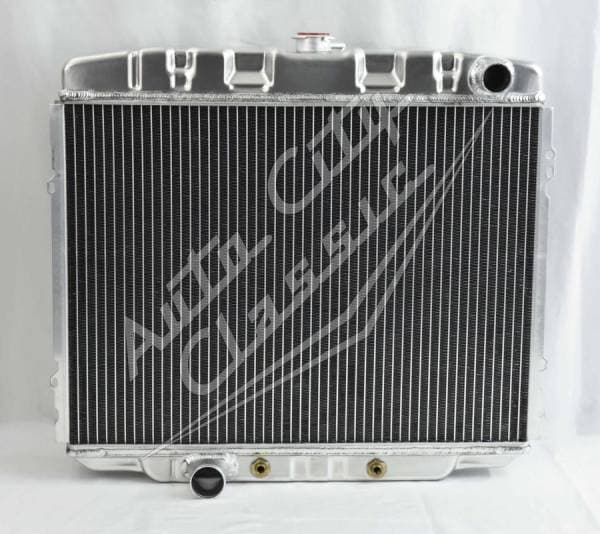

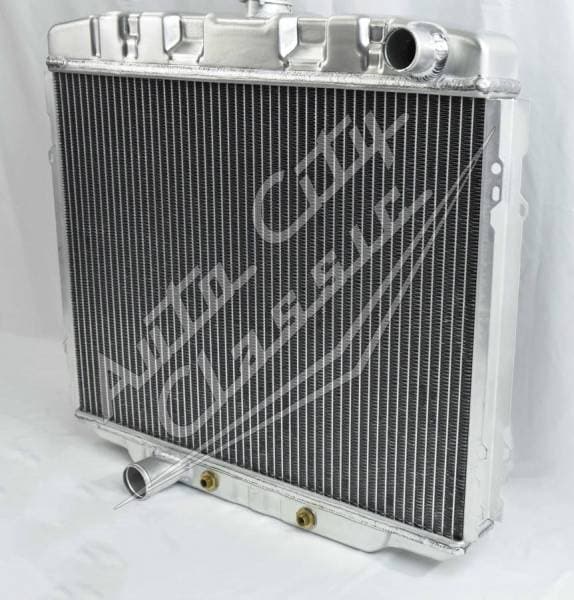

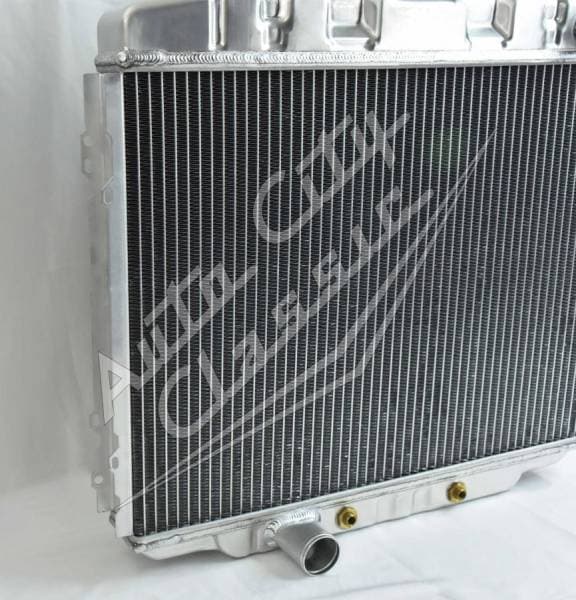

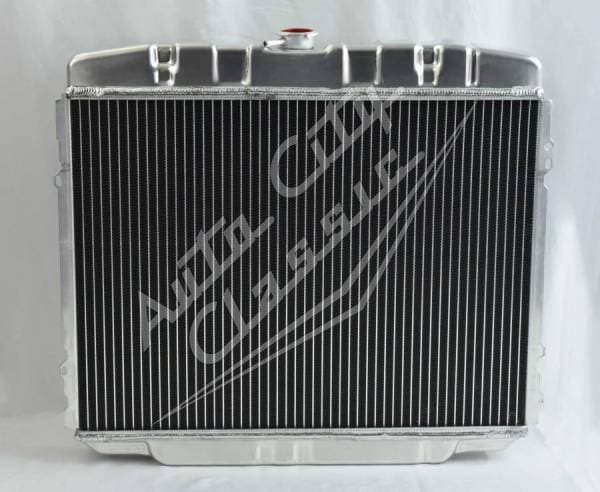

Aluminum Radiator Upper Right, Lower Left- Optional Shroud and Fan (Black or Chrome)
100% Aluminum, 100% Welded Radiator- Lifetime Warranty
Fits Models:
Ford
1965-1966 Galaxie (Not exact replacement of original for this model)
1967 Galaxie Big Block
1967-1969 Fairlane Big Block
1967-1969 Ranchero
1968-1969 Torino
Mercury
1966 Cyclone Big Block V8 (Not exact replacement of original for this model)
1967-1969 Cyclone Big Block
1967-1969 Comet Big Block
Direct replacement aluminum stamped and welded radiator. Comes with built in transmission cooler- dual 1 1/8" flow tubes for maximum cooling.
1 1/2" Upper Right Inlet, 1 3/4" Lower Left Outlet

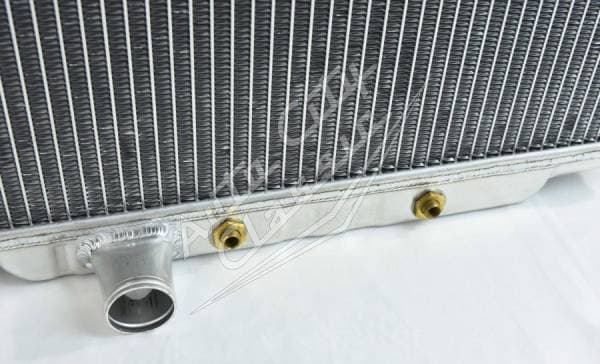

Transmission fitting size 1/8-27 NPT
Core Size: 23 1/2" wide x 17 1/4" tall x 2 1/2" thick
Overall Size (widest point): 25 1/2" wide x 23" tall x 3" thick

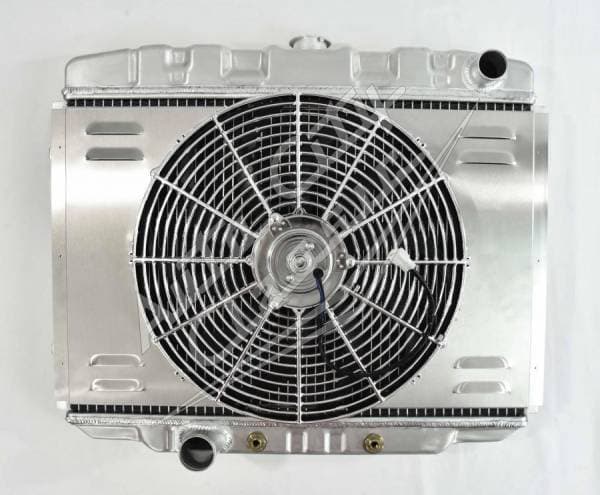

Note: There is an option to add the aluminum shroud and 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.
Questions? 1-800-828-2212
*Lifetime warranty is for manufacturer defects only.*
