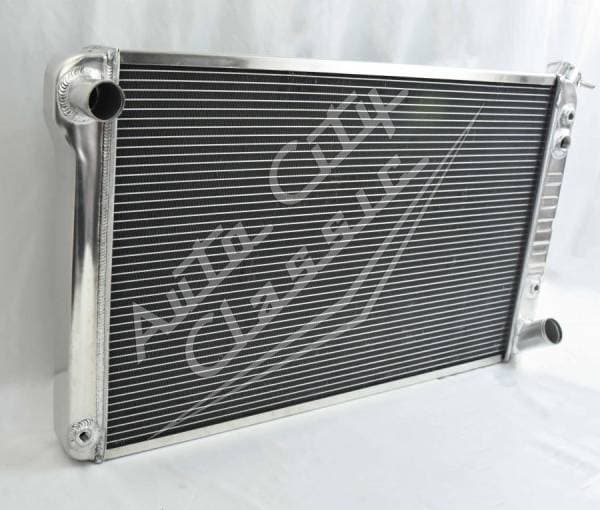

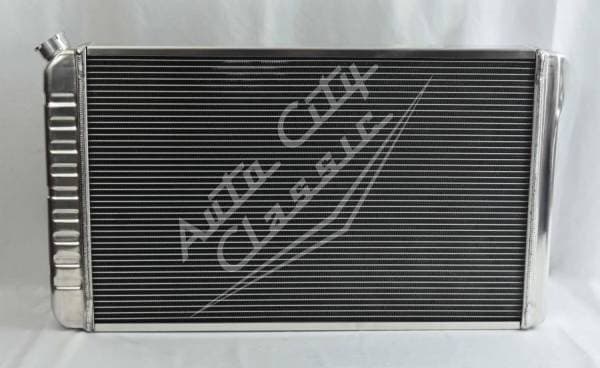

Aluminum Radiator Upper Left, Lower Right- Optional Shroud and Fan (Black or Chrome)

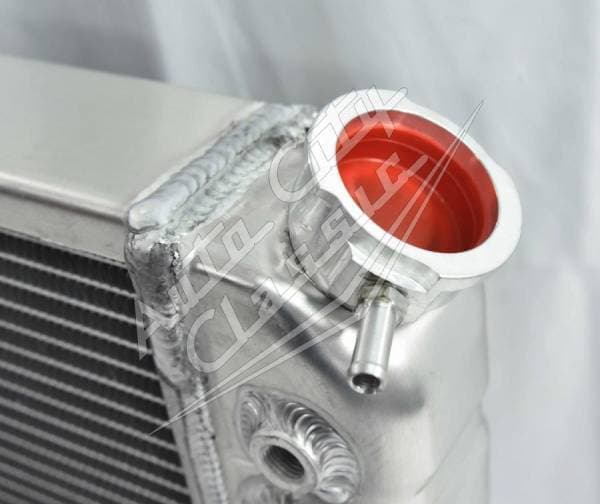

100% Aluminum, 100% Welded Radiator- Lifetime warranty.
Fits Models:
1967-1972 Chevrolet/GMC pickup trucks.
Oldsmobile
1974 88/98 With heater return
1975-1976 442 With heater return, no low coolant
Direct replacement aluminum radiator with stamped tanks and built in transmission cooler. Radiator has dual 1 1/8" high flow tubes for maximum cooling.

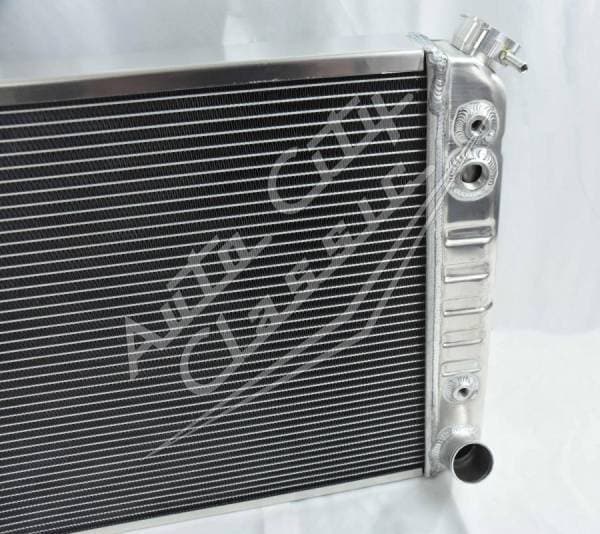

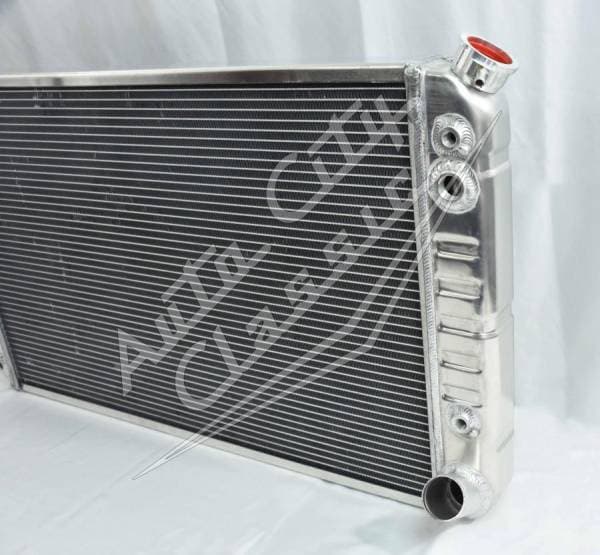

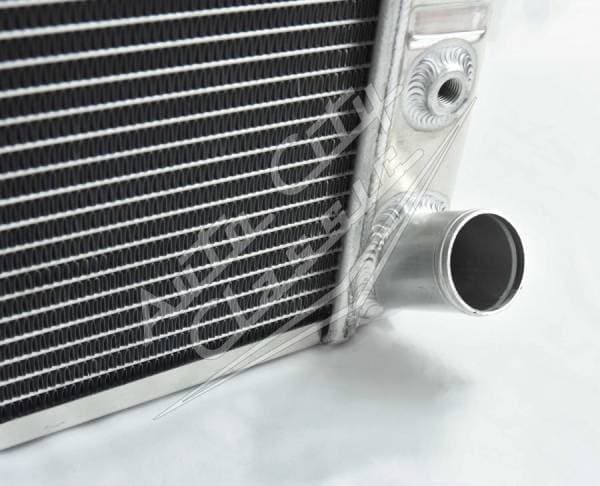

1 1/2" Upper Left Inlet and 1 3/4" Lower Right Outlet
Transmission fitting size 1/4-18 NPT
Core size: 28 1/4" wide, 18 3/4" tall, 2 1/2" thick
Overall size: 33 1/2" wide, 18 3/4" tall, 3" thick

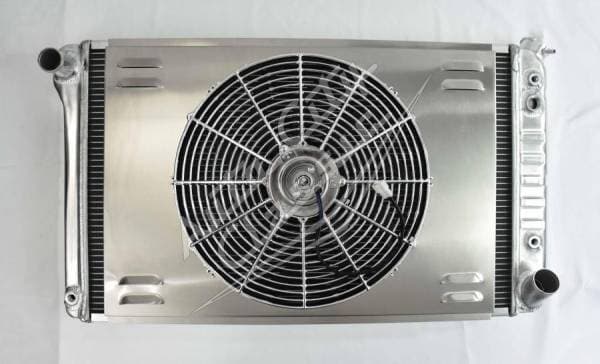

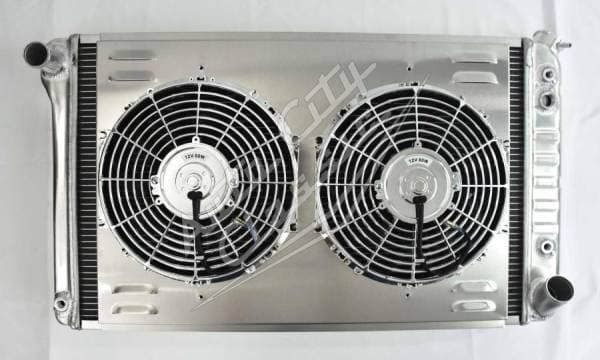

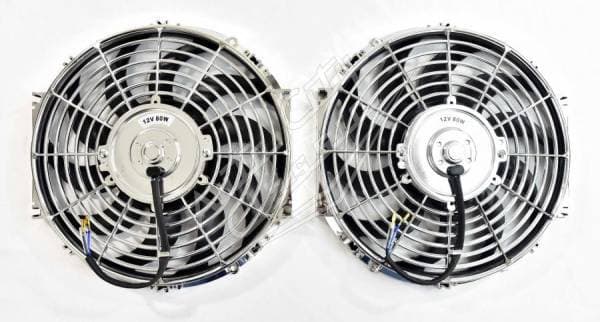

Note: There is an option to add the single or dual aluminum shroud and dual 12" or single 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.
Questions? 1-800-828-2212
*Lifetime Warranty is for manufacturer defects only.*
