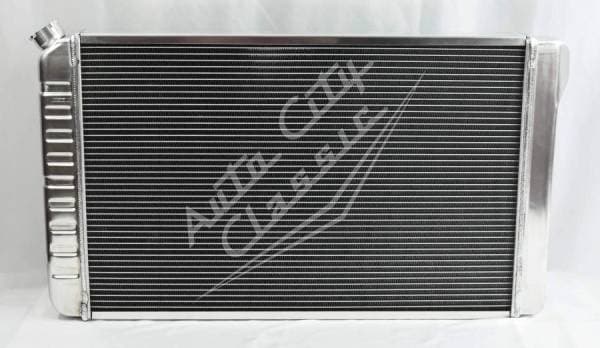

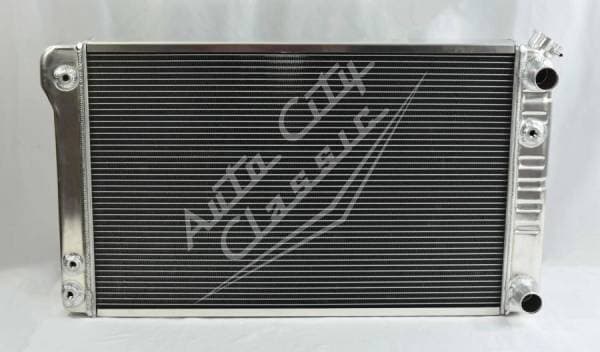

Aluminum Radiator Upper Right, Lower Right- Optional Shroud and Fan (Black or Chrome)
New 100% Auminum Radiator, 100% Welded- Lifetime Warranty
Fits Models: 1968-1972 Gm A-Body LS Motor Conversion
Buick LS
1968-1973 Skylark
1972-1976 Wildcat
Chevrolet LS
1968-1977 Chevelle
1968-1977 El Camino
1967-1979 Chevy Pickup
Oldsmobile LS
1966-1974 442 LS Motor Conversion
1965-1974 88/98 LS Motor Conversion and 28 1/4" Mounts
Pontiac LS
1968-1976 Bonneville
1972-1976 Catalina LS and 28 1/4" Mounts
1968-1977 Gto, Tempest, Lemans LS and 28 1/4" Mounts
1968-1976 Grand Prix LS and 28 1/4 Mounts
Stamped and ribbed original style tank. Direct replacement for GM 28 1/4" and rubber mounts just like stock. Ready for steam port. Radiator has built in transmission cooler with dual 1 1/8" high flow tubes for maximum cooling.

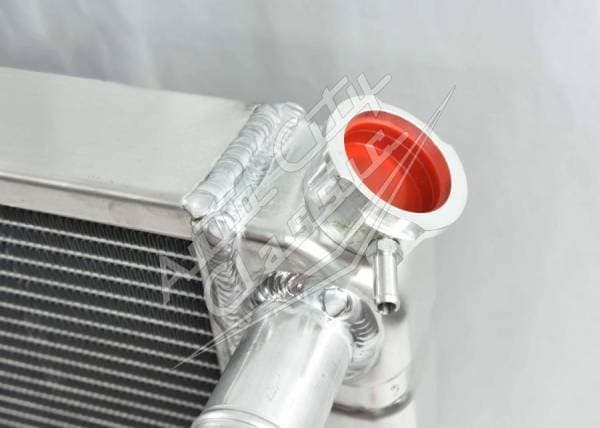

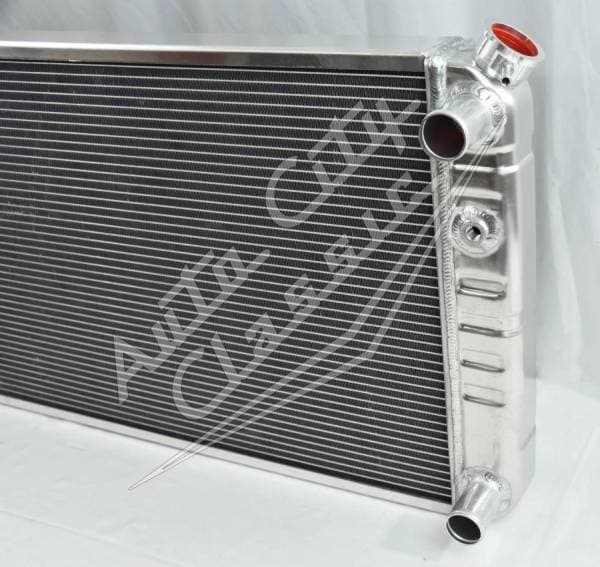

1 1/2" Upper Right Inlet, 1 1/2" Lower Right Outlet
Transmission fitting size 1/4-18 NPT
Core size: 27 3/4" wide, 18 3/4" tall, 2 1/2" thick
Overall size (widest point): 33 1/2" wide, 18 3/4" tall, 3" thick

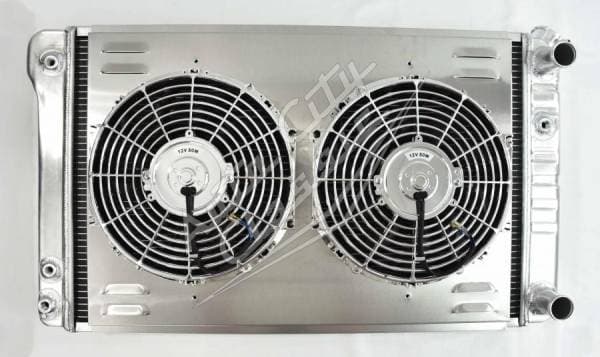

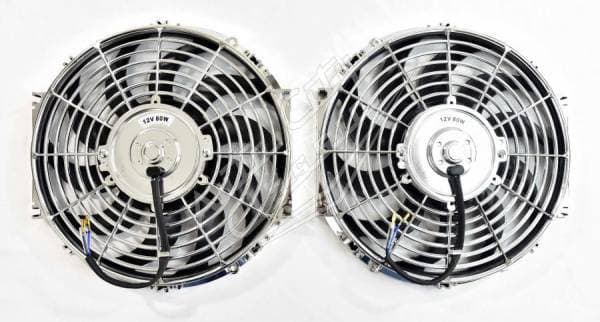

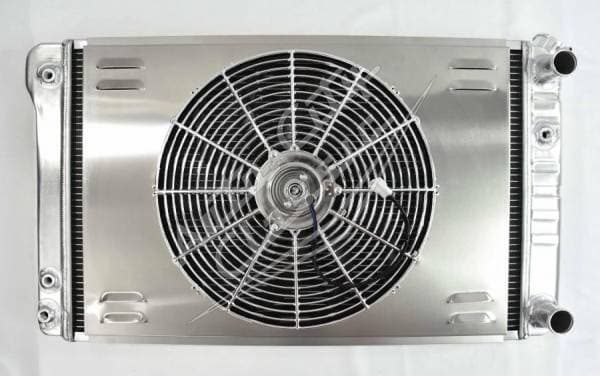

Note: There is an option to add the single or dual aluminum shroud and dual 12" or single 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.
Questions? 1-800-828-2212
*Lifetime Warranty is for manufacturer defects only.*
