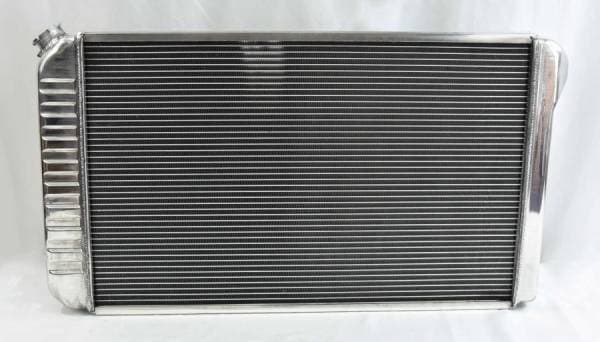

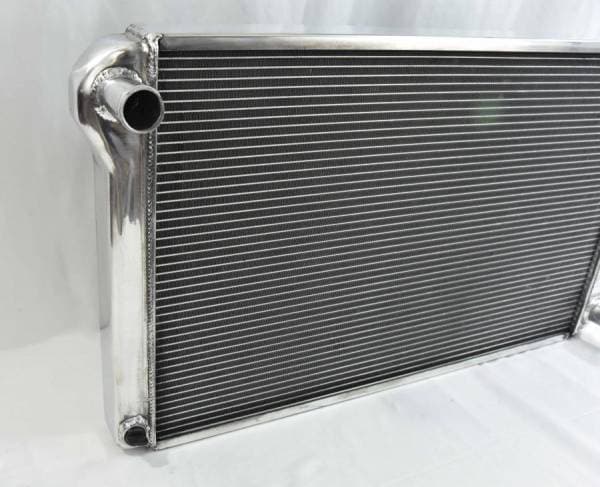

Aluminum Radiator Upper Left, Lower Right- Optional Shroud and Fan (Black or Chrome)
100% Auminum Radiator, 100% Welded- Lifetime Warranty
Fits Models: 1973-1977 Chevy and GMC Pickup and Suburban
(Can be used in 1978-1980 if it has the shorter core height and uses the 73-77 style 1 1/2" hose)

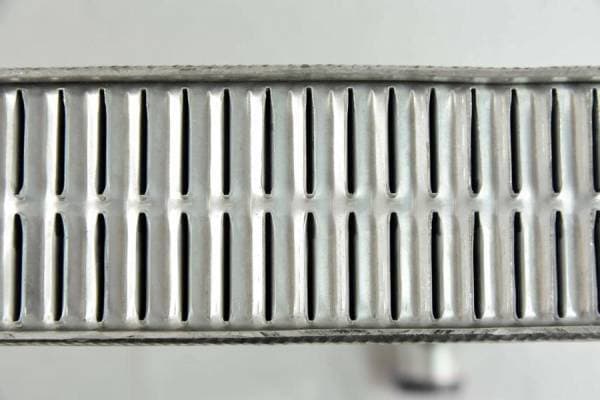

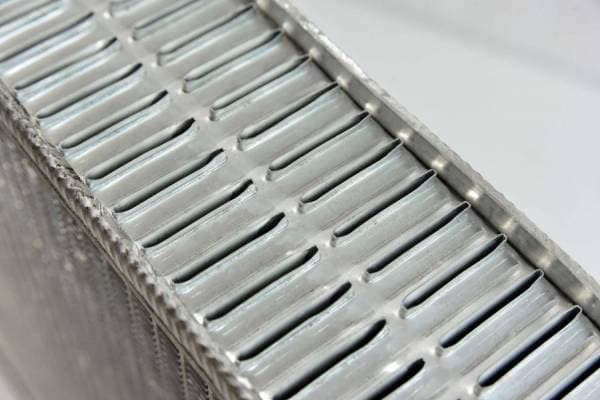

Direct replacement aluminum crossflow radiator for 73-77 Chevy and GMc Pickup and Suburban. Radiator has built in transmission cooler with dual 1 1/8" high flow tubes for maximum cooling and includes heater return port.

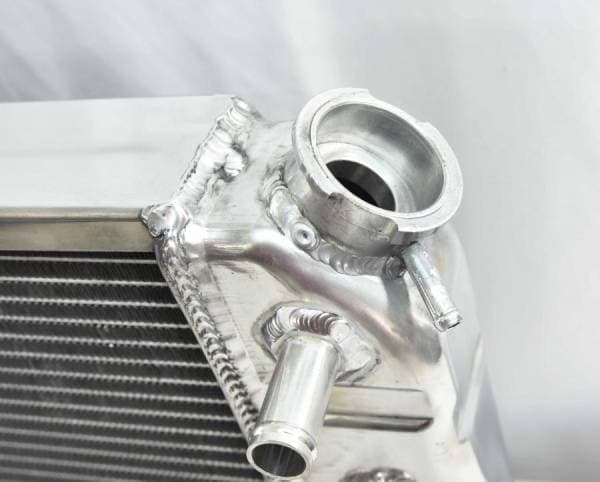

1 1/2" Upper Left Inlet, 1 1/2" Lower Right Outlet
Transmission fitting size 1/4-18 NPT
Core size: 33 1/2" wide, 18 3/4" tall, 3" thick
Overall Size: 28 1/4" wide, 18 3/4" tall, 2 1/2" thick

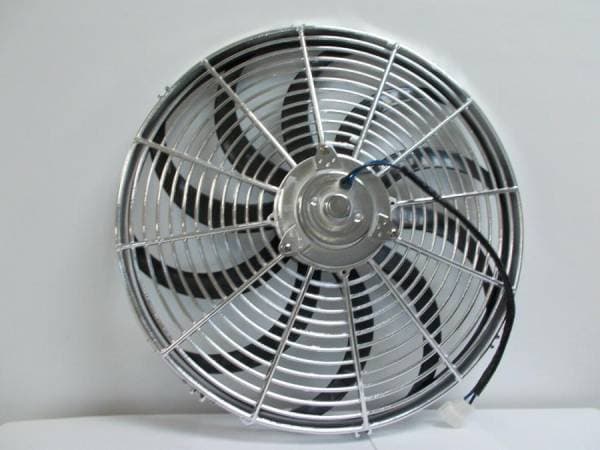

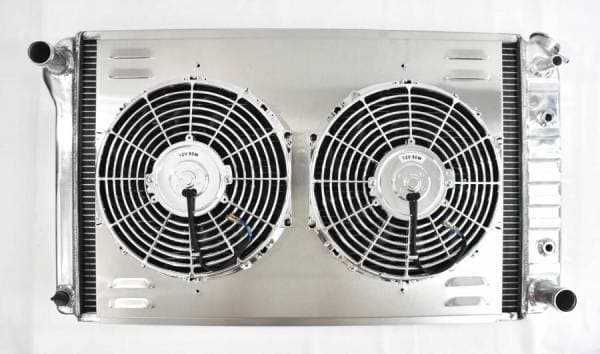

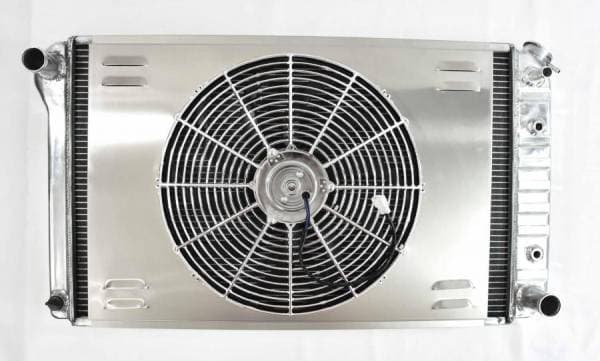

Note: There is an option to add the single or dual aluminum shroud and dual 12" or single 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.
Questions? 1-800-828-2212
*Lifetime Warranty is for manufacturer defects only.*
